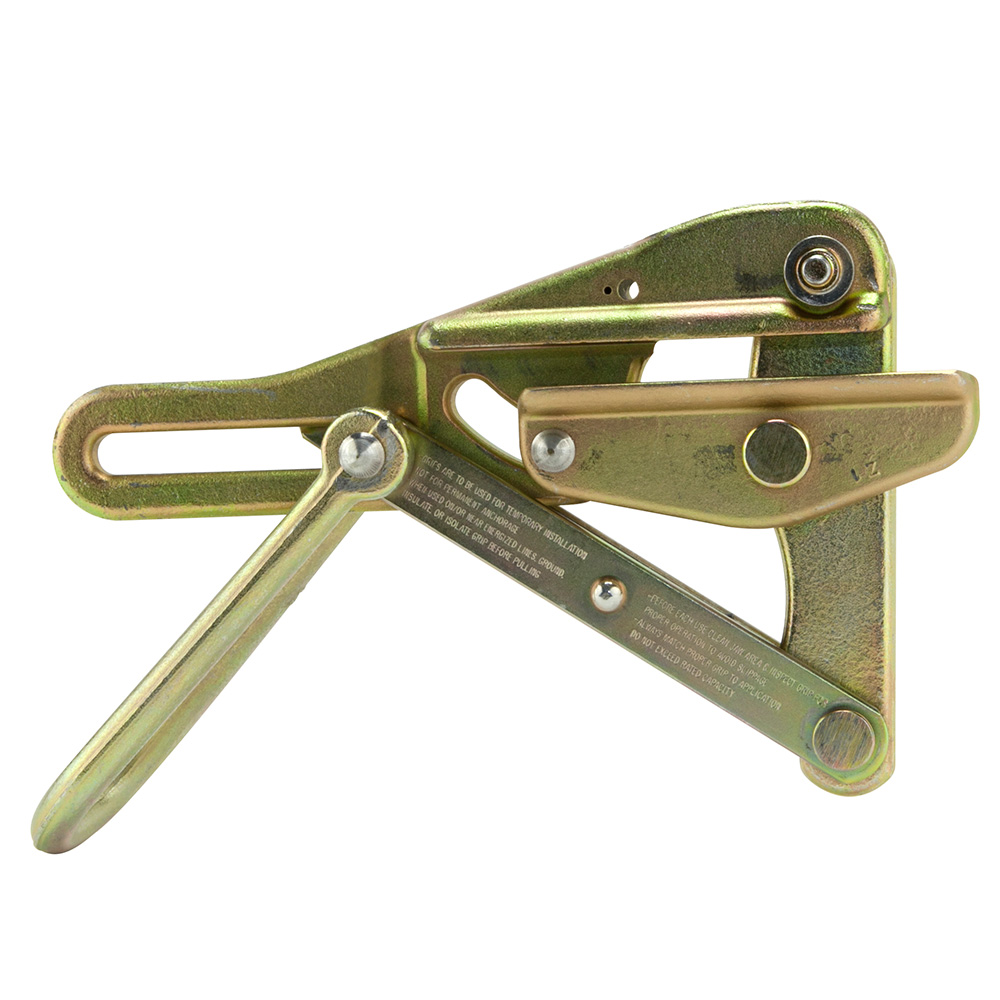

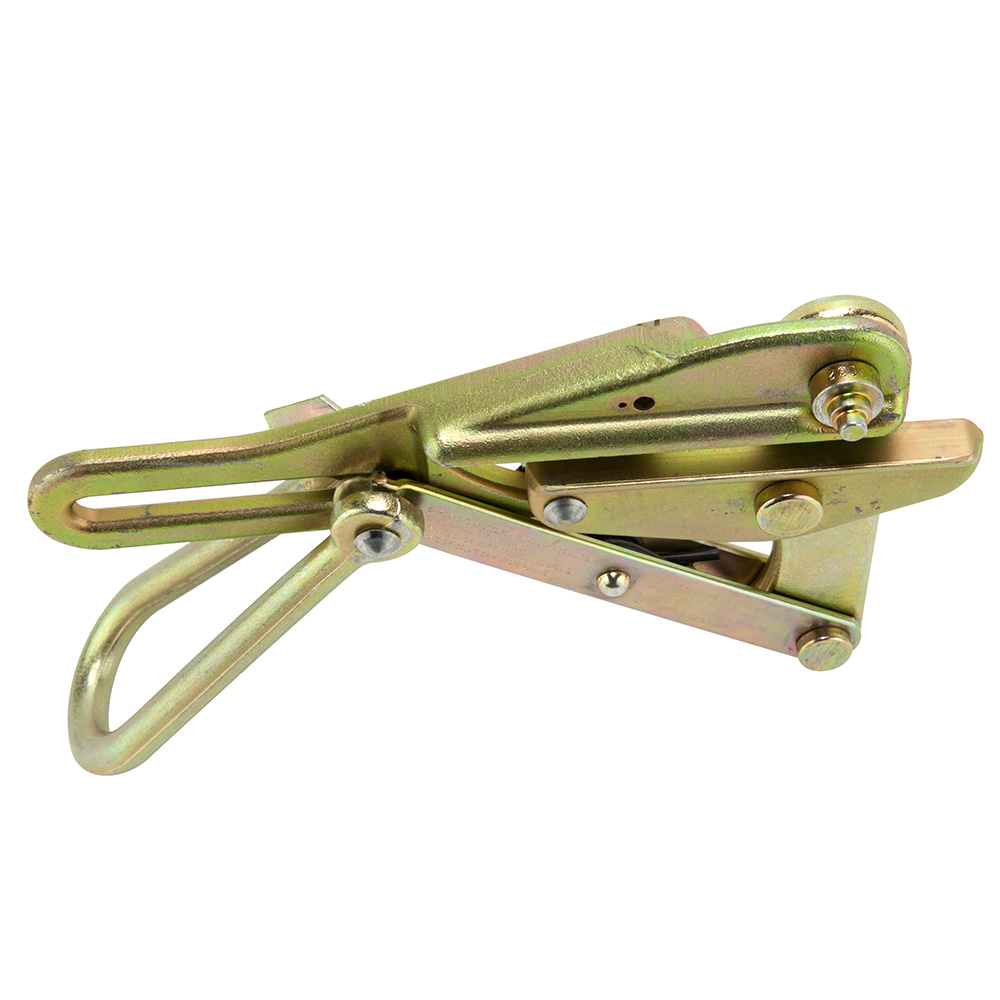

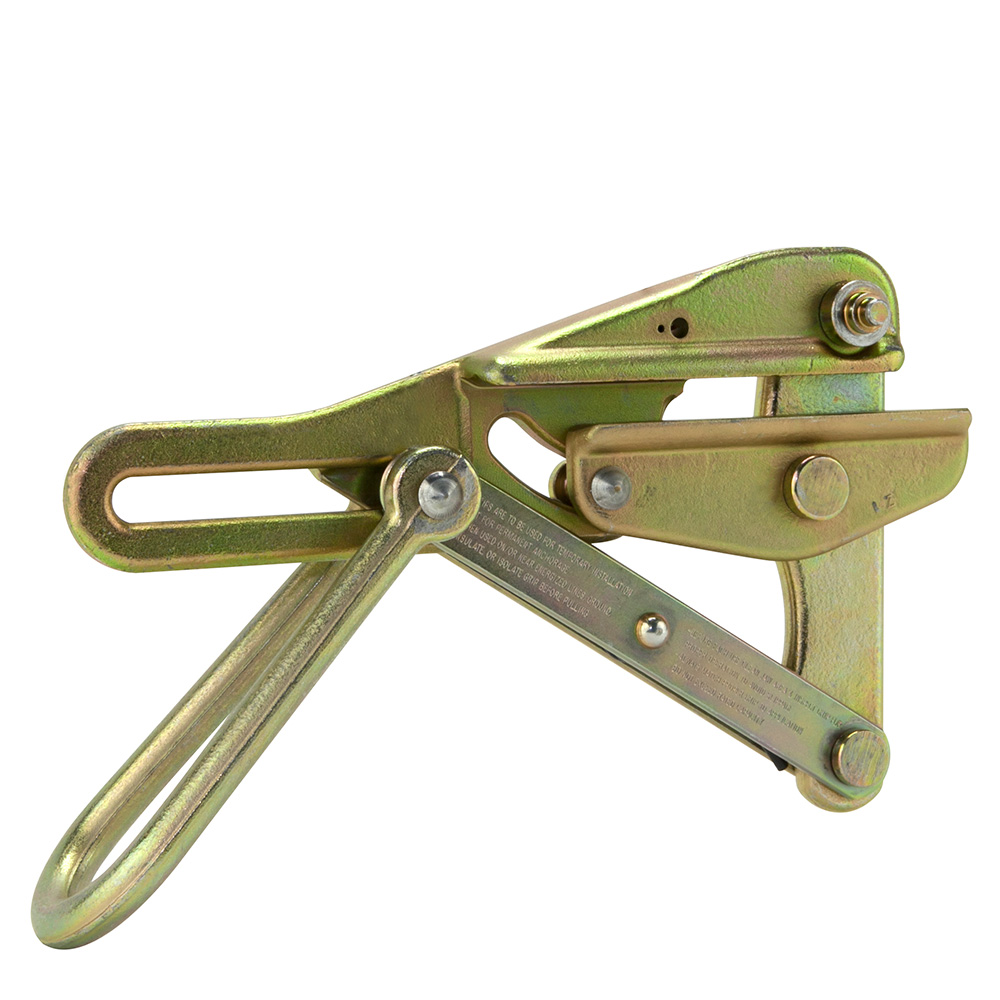

Chicago® Grip for Bare Copper Wire

1613-35

  • Pulls #6 to #8 AWG bare copper wire with max safe load of 4500-Pound (2100 kg)
  • Locking loop handles allow the jaws to be held in an open position for easy placement on wire or cable
  • Single V groove jaw contour
  • Hot latch version available (Cat. No. 1613-35H)
  • Made in USA
Videos

Finding the best grip to pull small copper can be challenging. Copper stretches over time becoming too thin for some grips which may cause slippage. Some smaller grips are harder to manipulate when wearing rubber gloves and are not hot latch compatible. Using a grip that's too big, too strong or too aggressive could damage the cable. Klein Tools' 1613 Series Bare Wire Chicago Grip is big enough to work with gloves but small enough to pull #6 and #8 copper without damaging it. It's just right for the job.

Specifications
Type:
Chicago Grip
Cable Type:
Copper, ACSR
Cable Diameter:
0.1285'' to 0.162'' (3.3 to 4.06 mm)
Hot Latch:
N
Swing Latch:
N
Spring:
Y
Locking Handle:
Y
Jaw Type:
Single V
Jaw Length:
4.188'' (10.6 cm)
Maximum Safe Load:
4500 lb (2041 kg)
Weight:
2.9 lb (1.3 kg)
UPC:
092644471919
Additional Information
Feature Icon klein/wf_grips-singlev-jaw.jpg
Warnings
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.
