YRWC150

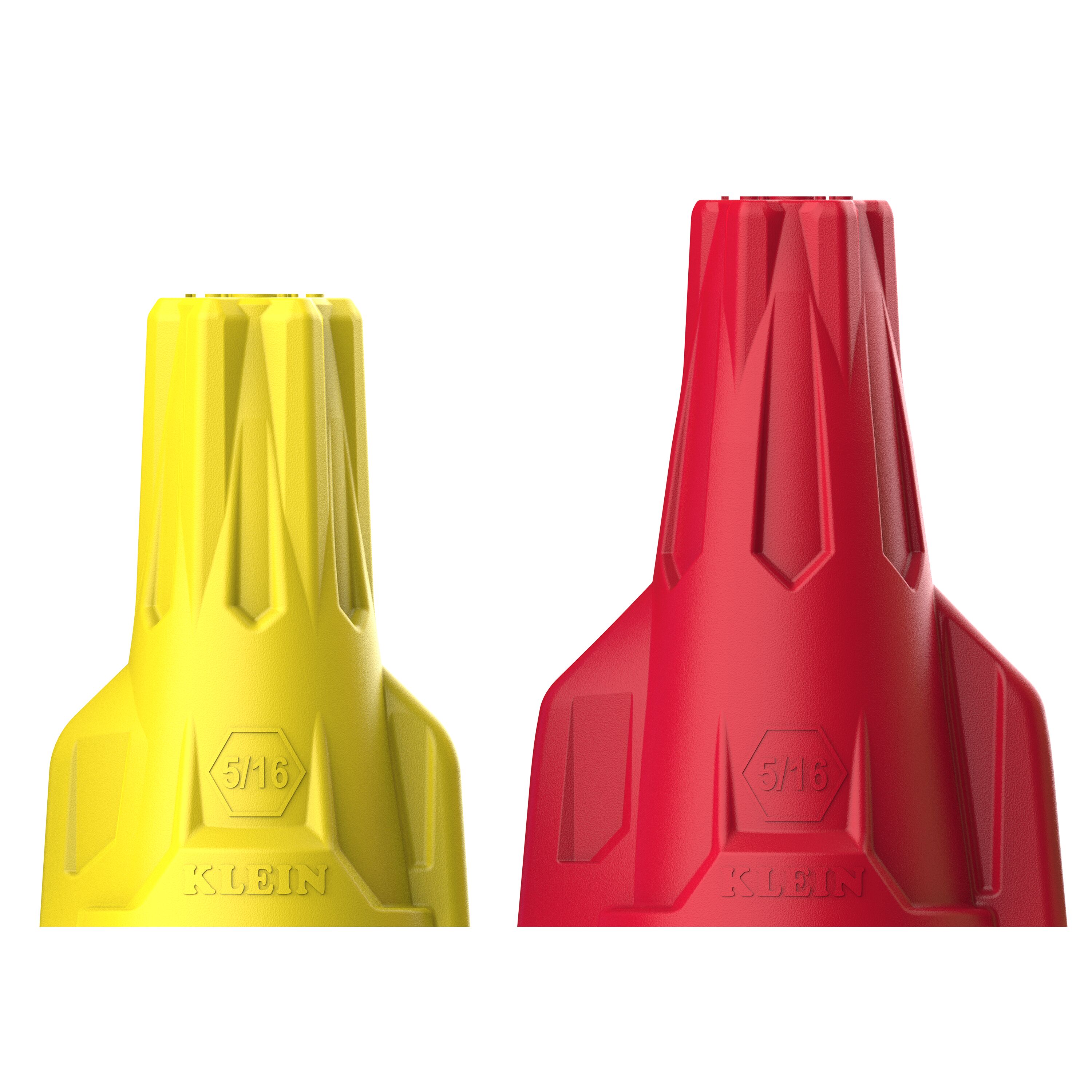

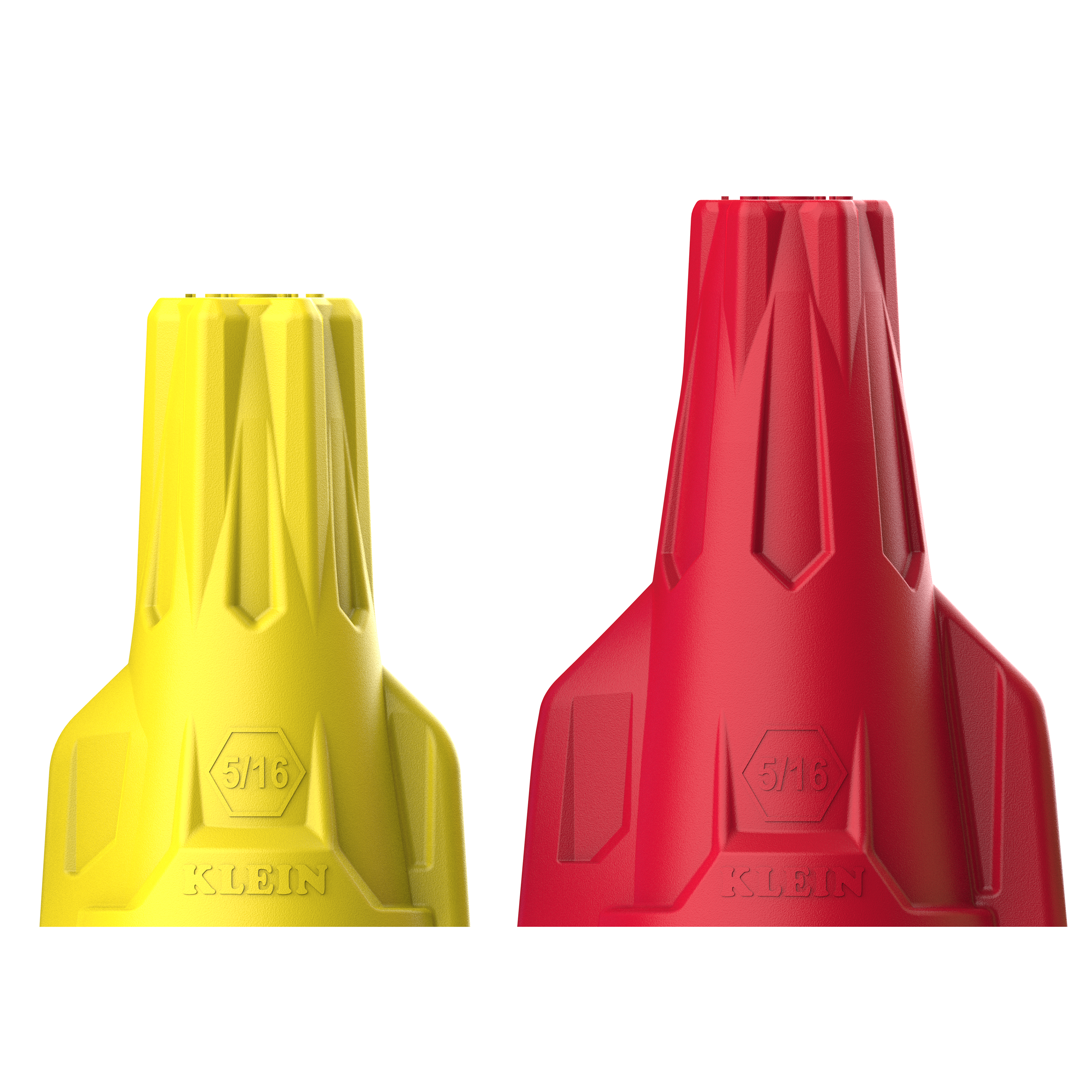

COMING SOON - Yellow and Red Winged Wire Connectors, 150-Pack
- Curved wing design provides added leverage for tough wire combinations while maintaining a compact profile that helps maximize box fill
- Quick-bite spring quickly grips conductors to provide fast, secure, and reliable connections
- Wide wire range (yellow 18-10, red 22-6) accommodates a variety of wire combinations for added jobsite versatility
- 5/16-Inch hex top is compatible with nut drivers and power tool accessories for rapid twisting and installation
- Includes total of 150 Connectors: 75 yellow and 75 red
- UL Listed as a pressure-type wire connector providing reliable performance for a wide range of jobsite applications
Klein Tools Wire Connectors feature a curved wing design for added leverage on difficult wire combinations while maintaining a compact profile. A quick-bite spring provides secure connections across a wide wire range (yellow 18-10, red 22-6). The 5/16-Inch hex top is compatible with nut drivers and power tool accessories, and the durable, UL Listed polypropylene shell is designed for reliable performance in demanding jobsite conditions.
Specifications
Type:
Standard Twist-On
Application:
Wire Connector
Special Features:
Curved Wings, Quick Bite Spring, Hex Top
Color:
Yellow, Red
Material:
Polypropylene
Weatherproof:
No
Underground Use:
No
Maximum Operating Temperature:
221°F (105°C)
Minimum Wire Gauge:
Yellow 18; Red 22
Maximum Wire Gauge:
Yellow 10; Red 6
Maximum Voltage:
600V Building Wires, 1000V Signs or Luminaires
Overall Length (Inch):
4.1
Overall Length (cm):
10.4
Overall Height (Inch):
6.8
Overall Height (cm):
17.3
Overall Width (Inch):
4.1
Overall Width (cm):
10.4
Included:
150 Assorted Wire Connectors
Weight (oz):
16.1
Weight (g):
456
Package Quantity:
150
UPC:
092644350283
