Klein Tools - For Professionals Since 1857

Pass-Thru™ Modular Data Plugs, RJ45-CAT6A, Shielded (STP), 50-Pack

VDV826-705

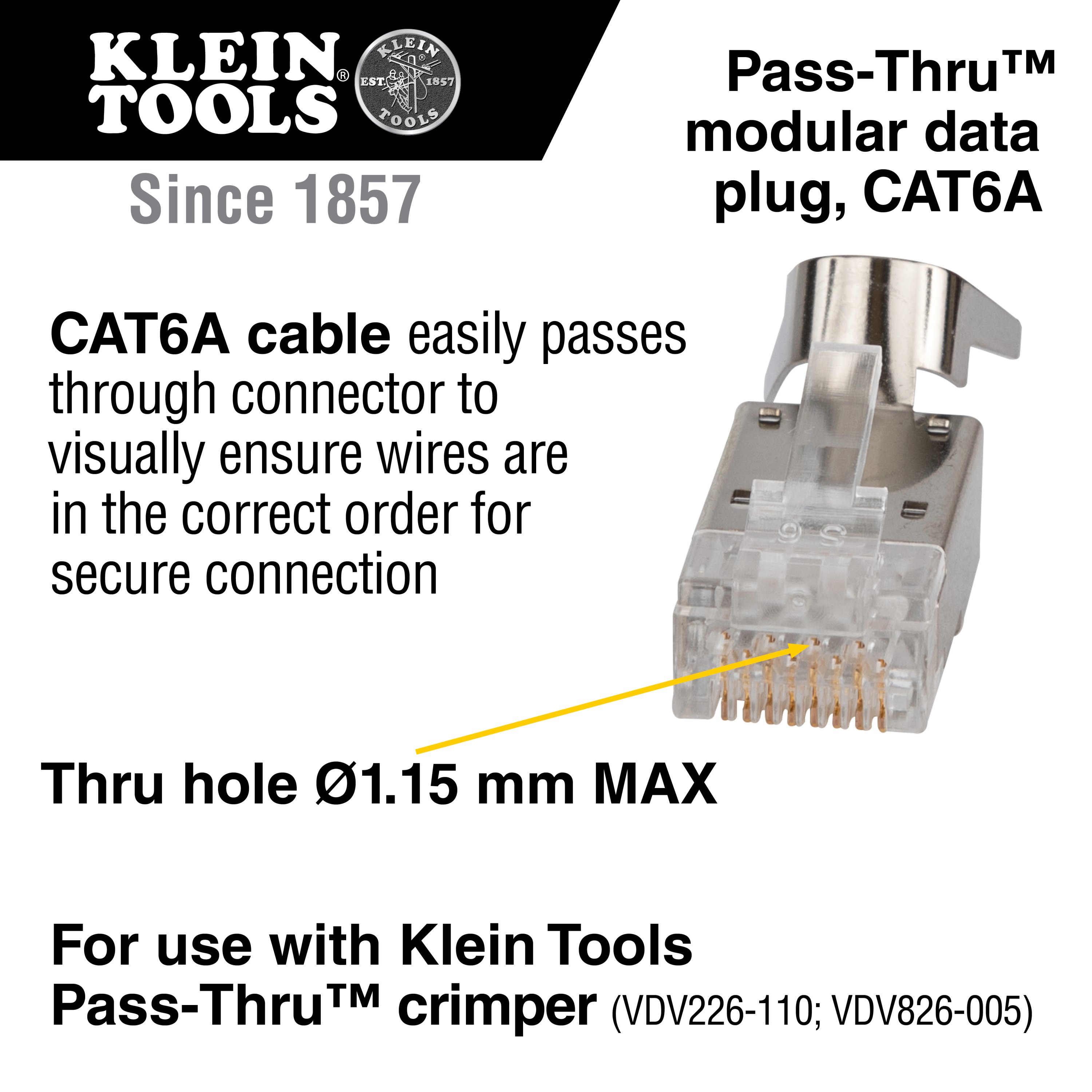

  • Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
  • For CAT6A shielded cable and larger diameter/thicker jacket CAT6 cable
  • CAT6A cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
  • Fully compliant with Power Over Ethernet (PoE and PoE+) standards
  • Requires pass-through type crimping tool (Cat. No. VDV226-110 recommended)
  • 8 position, 8 contact pass-through type data plugs for solid or stranded wire
  • Category 6A performance per TIA/EIA-568-B.2
  • 50-Pack
  • 50 µ-inch gold plating on all contact surfaces
  • Max diameter for CAT6A Pass-Thru™ Connectors is 0.043-Inch (1.1 mm)

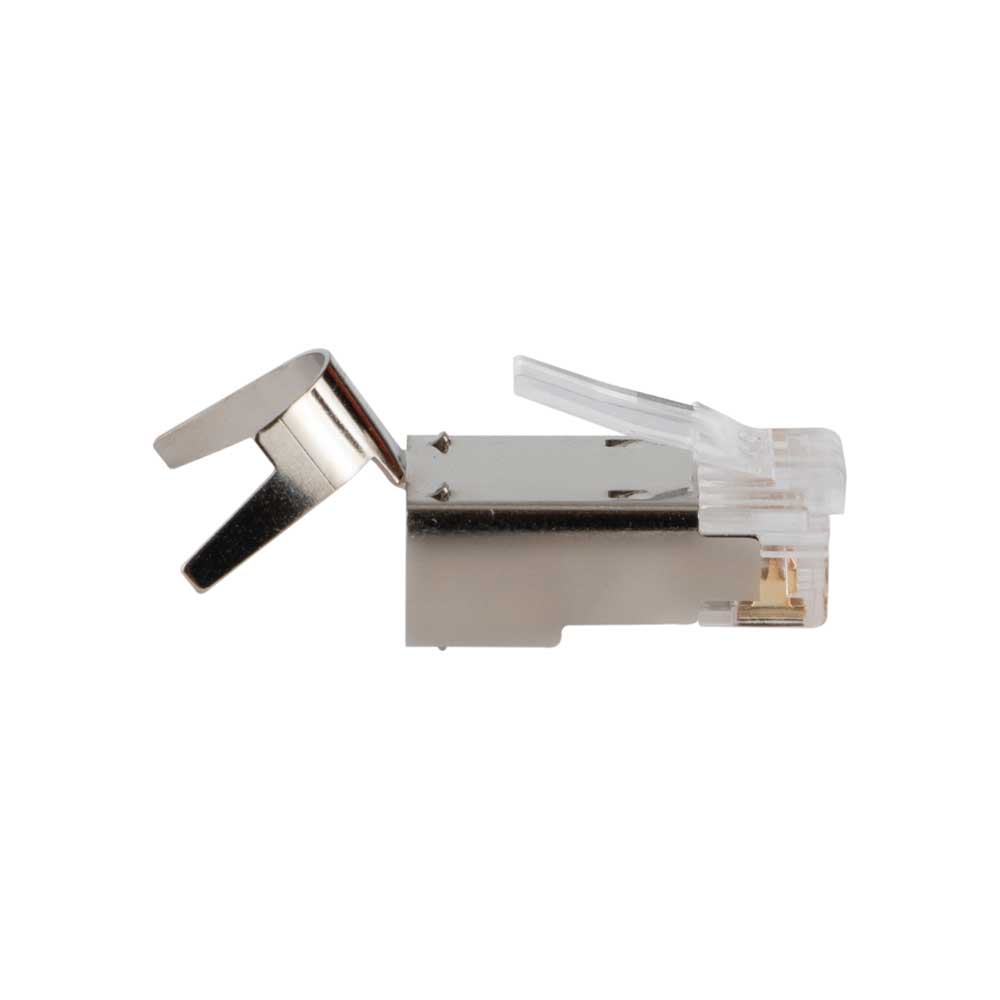

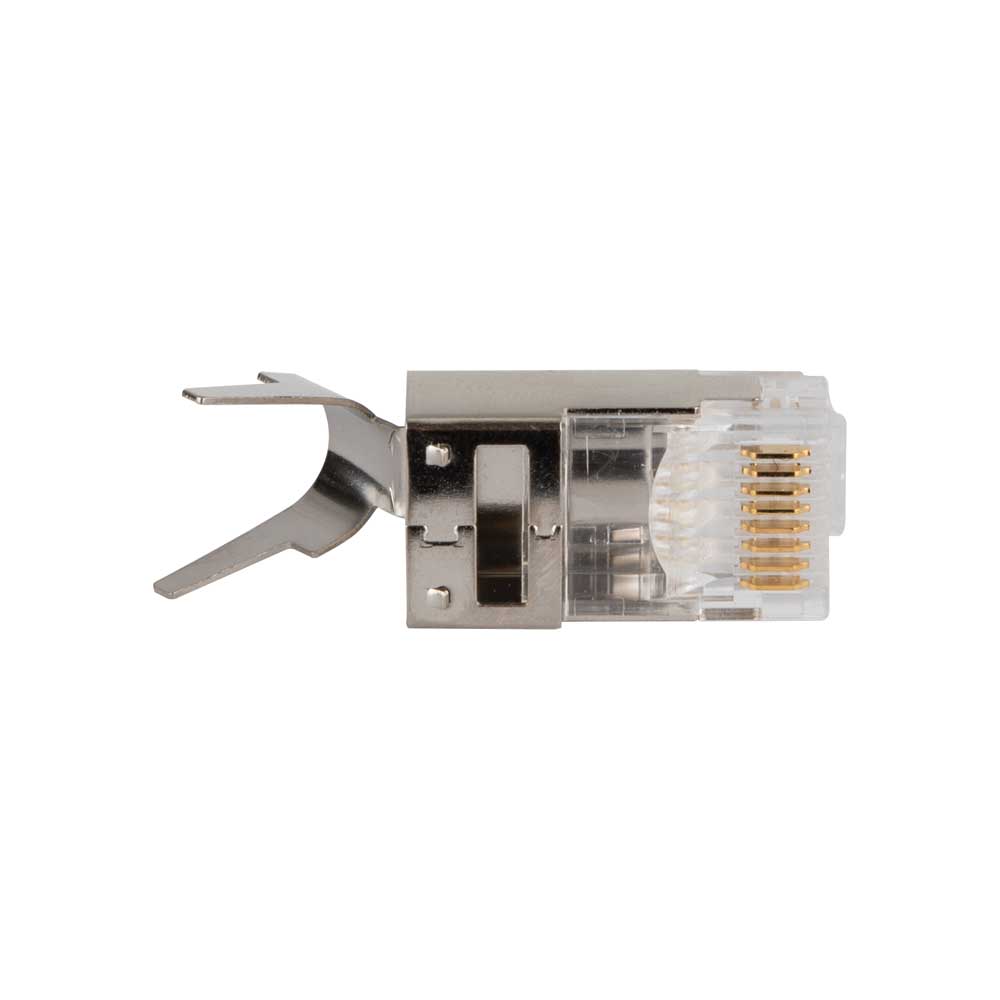

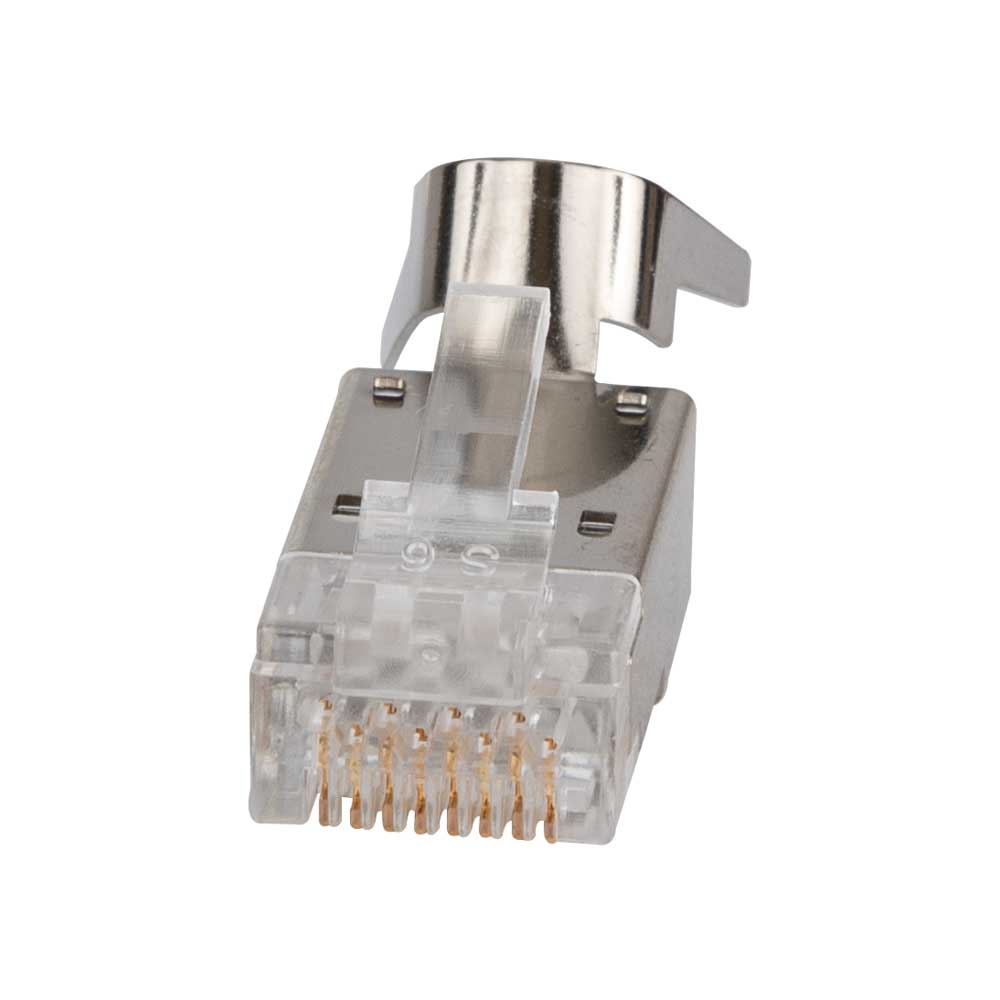

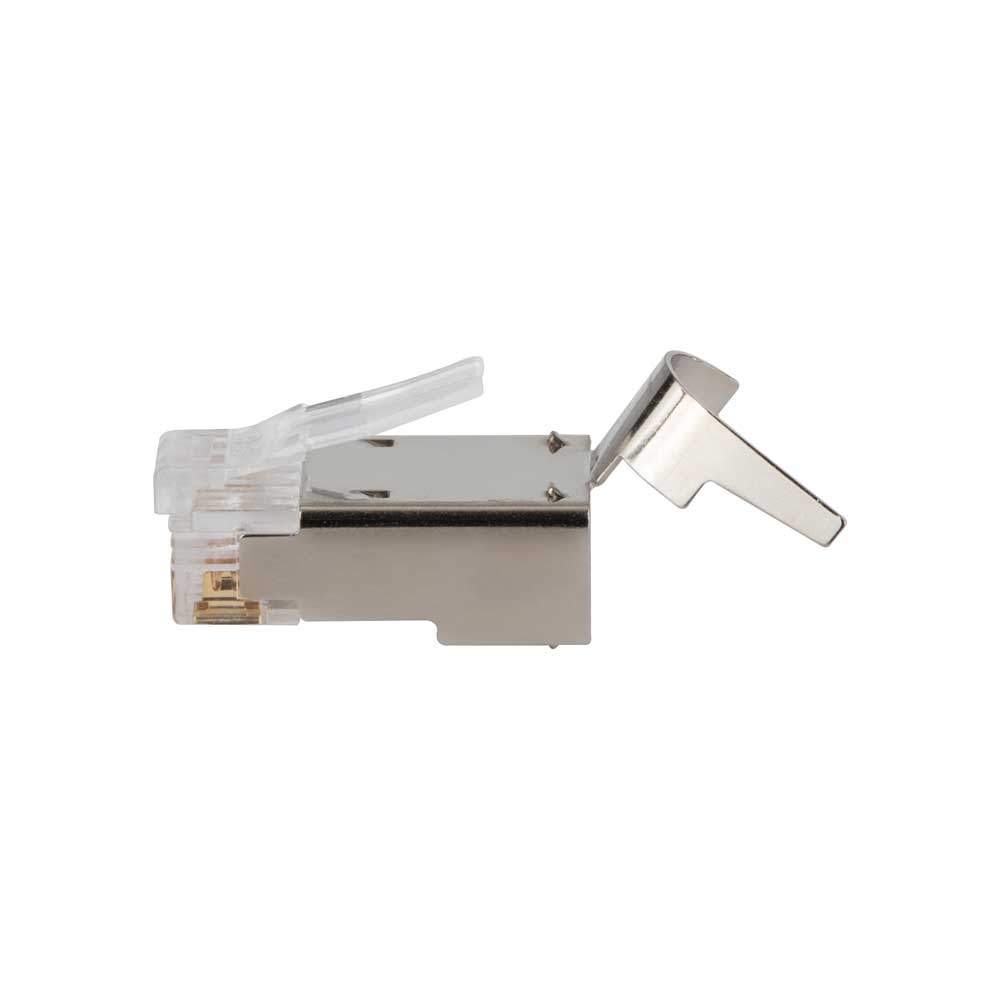

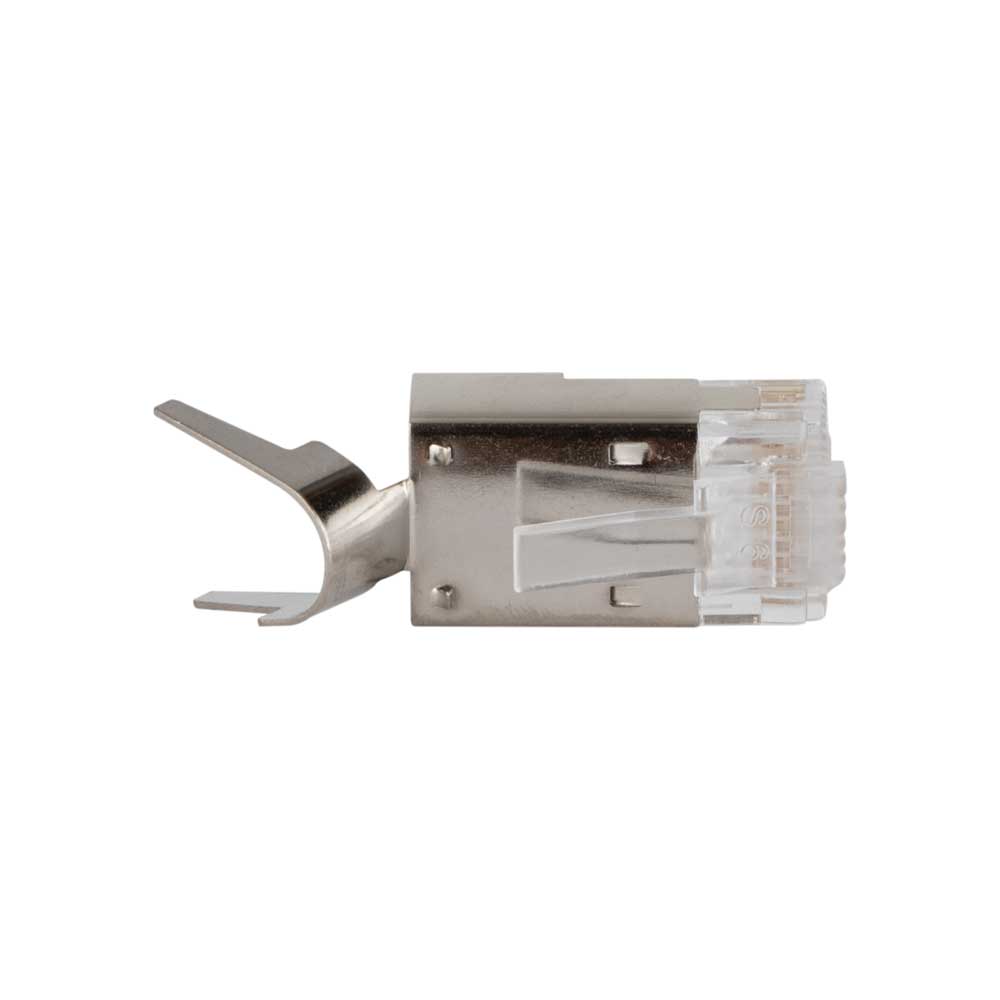

Images
JPG (High Resolution) vdv826705_photo.jpg
PNG (Transparent Background) vdv826705.png

Exclusive Klein-designed CAT6A Pass-Thru™ modular plugs for fast, reliable connector installations for data applications. CAT6A shielded cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper Cat. No. VDV226-110, and eliminates wasted materials.

Specifications
Type:
Modular
Application:
Voice and Data
Special Features:
Pass-Thru Technology; Meets All PoE+ Standards
Overall Length:
0.8'' (2 cm)
Overall Height:
0.6'' (1.5 cm)
Overall Width:
0.4'' (1 cm)
Material:
PVC Plastic; Gold Plated Contacts
Connector Type:
RJ45
Cable Type:
CAT6A STP and Larger Diameter CAT6
Position & Contacts:
8P 8C
Connector Color:
Clear
Solid Conductor Wire:
Yes
Stranded Conductor Wire:
Yes
Package Quantity:
50
Weight:
6.05 oz (171 g)
UPC:
092644583919
Additional Information
Warnings
  • Do NOT use on energized circuits or cabling systems.
