Scout ® Pro 3 Tester with Test + Map™ Remote Kit

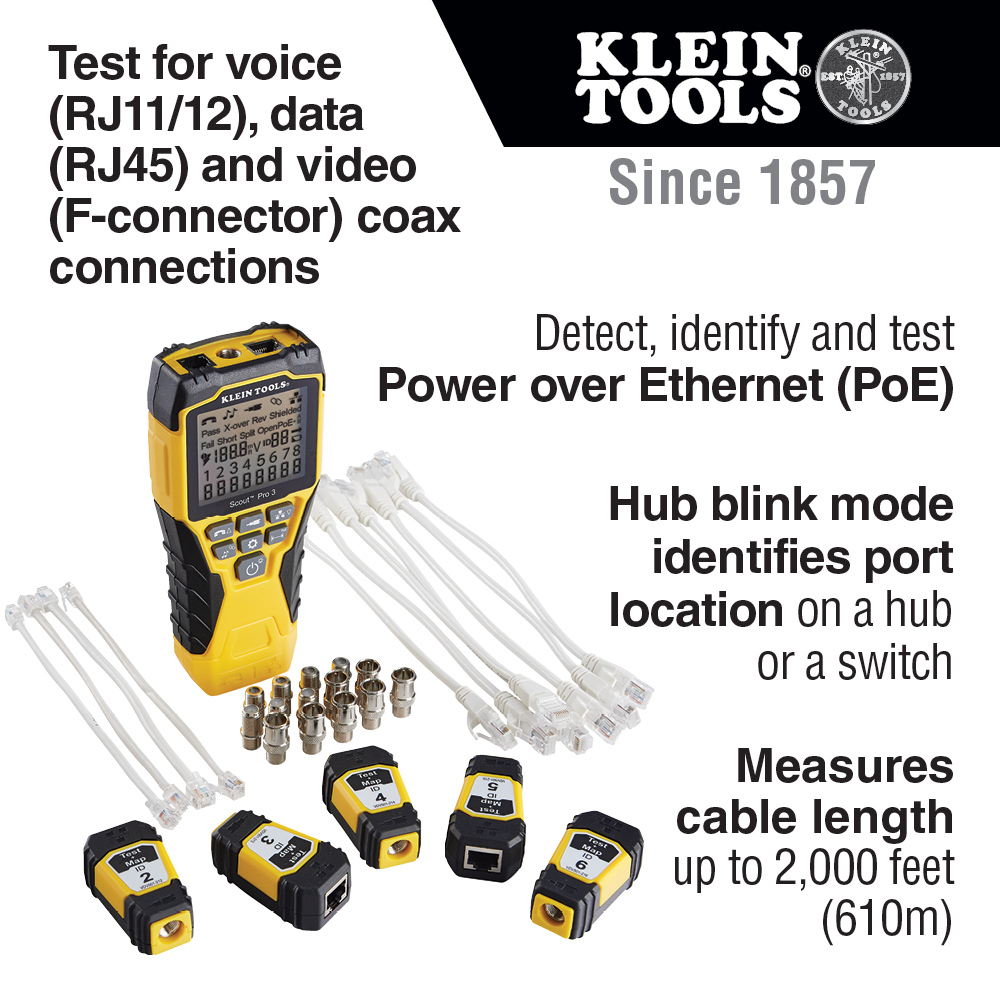

  • Tests voice (RJ11/12), data (RJ45) and video (F-connector) coax connections

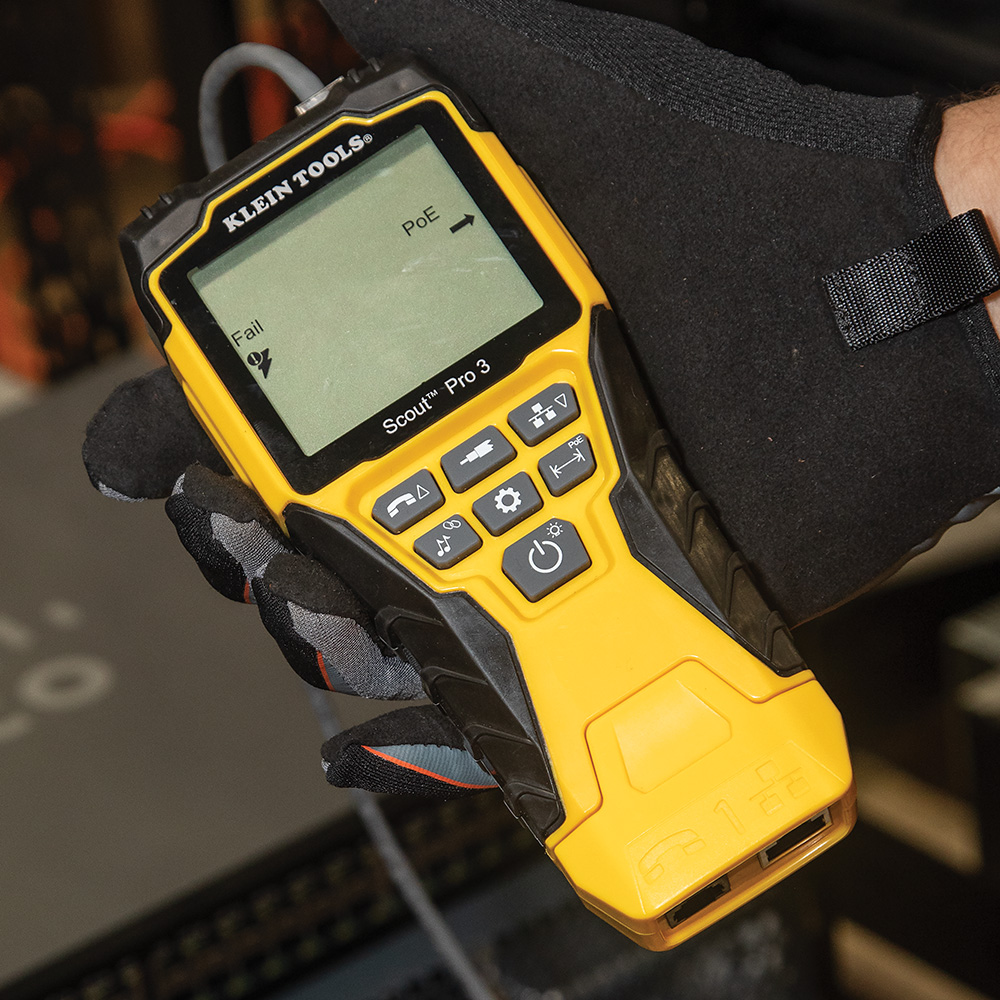

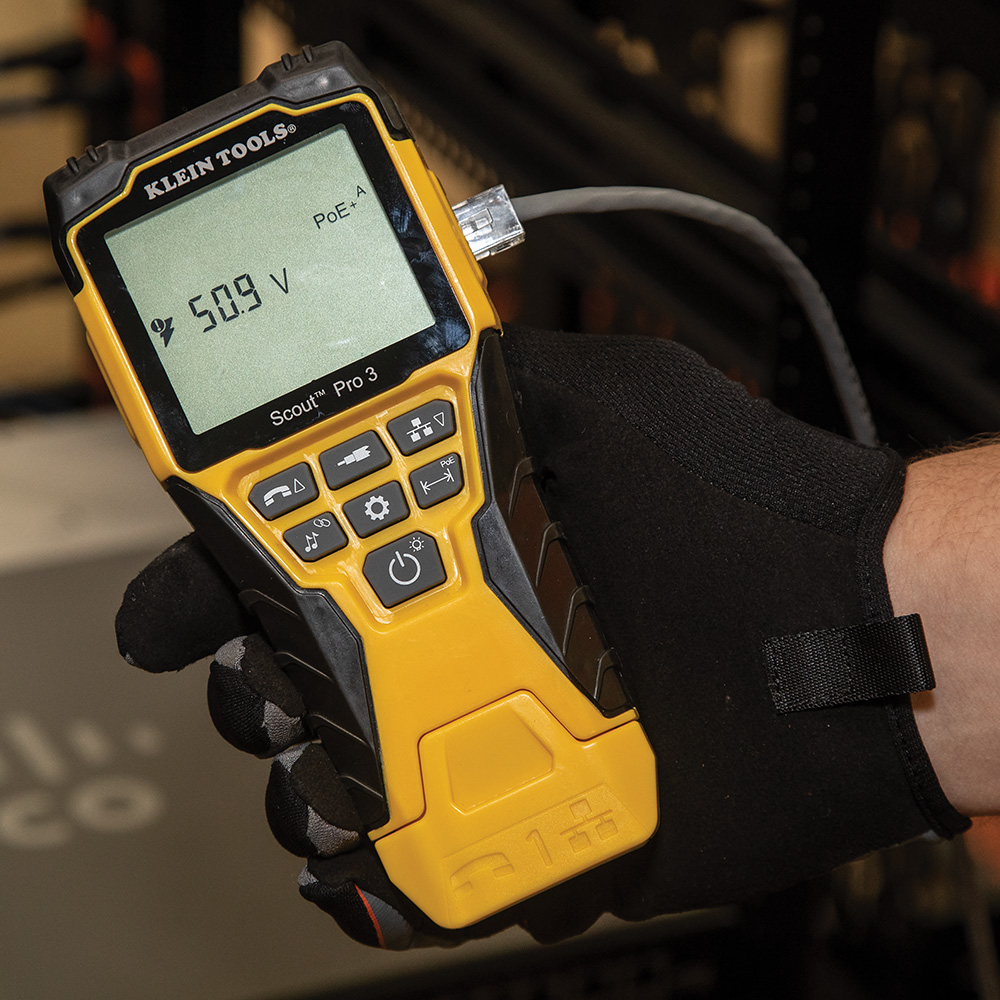

  • Detect, identify and test Power over Ethernet (PoE)
  • Wiremap testing, testing for Miswires, Split Pairs, Short Faults, Open Faults, and Shield

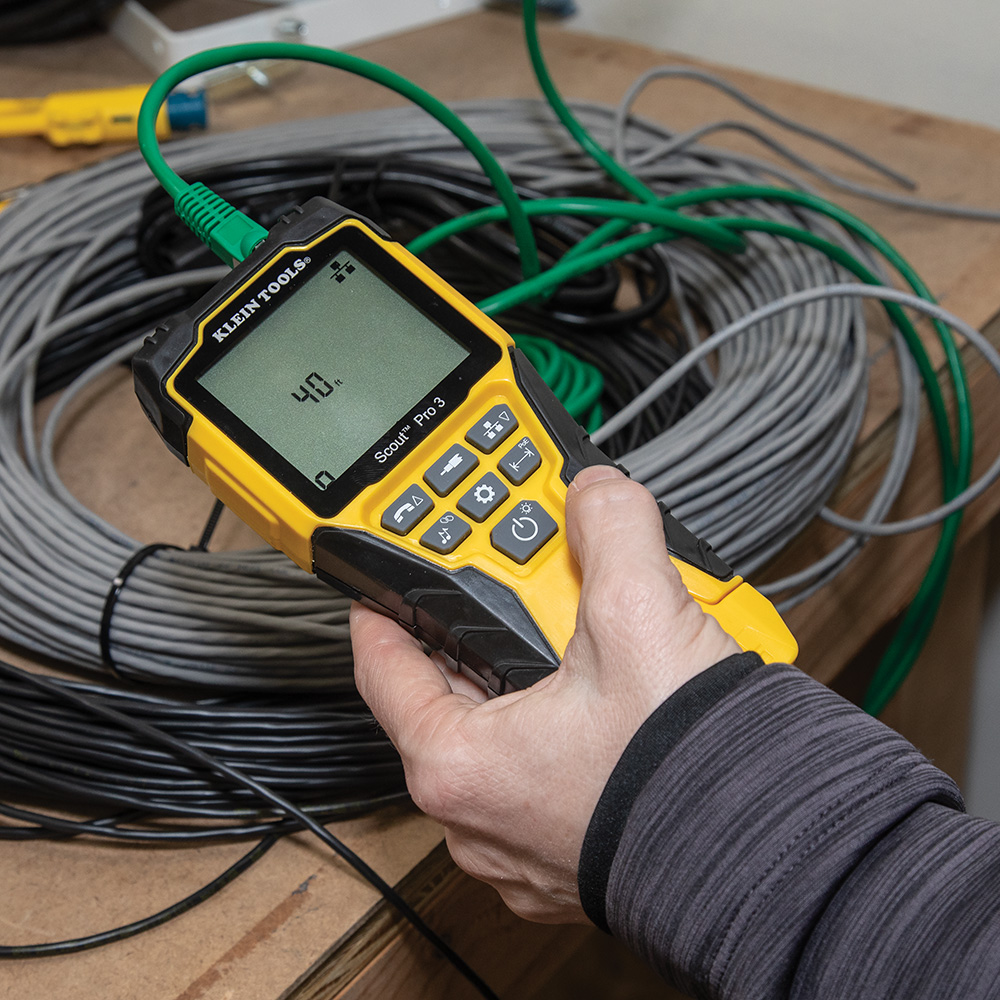

  • Measures cable length up to 2000 feet
  • Trace cables, wire pairs and individual conductor wires with a multi-style tone generator (requires analog probe Cat. No. VDV500-123; sold separately)

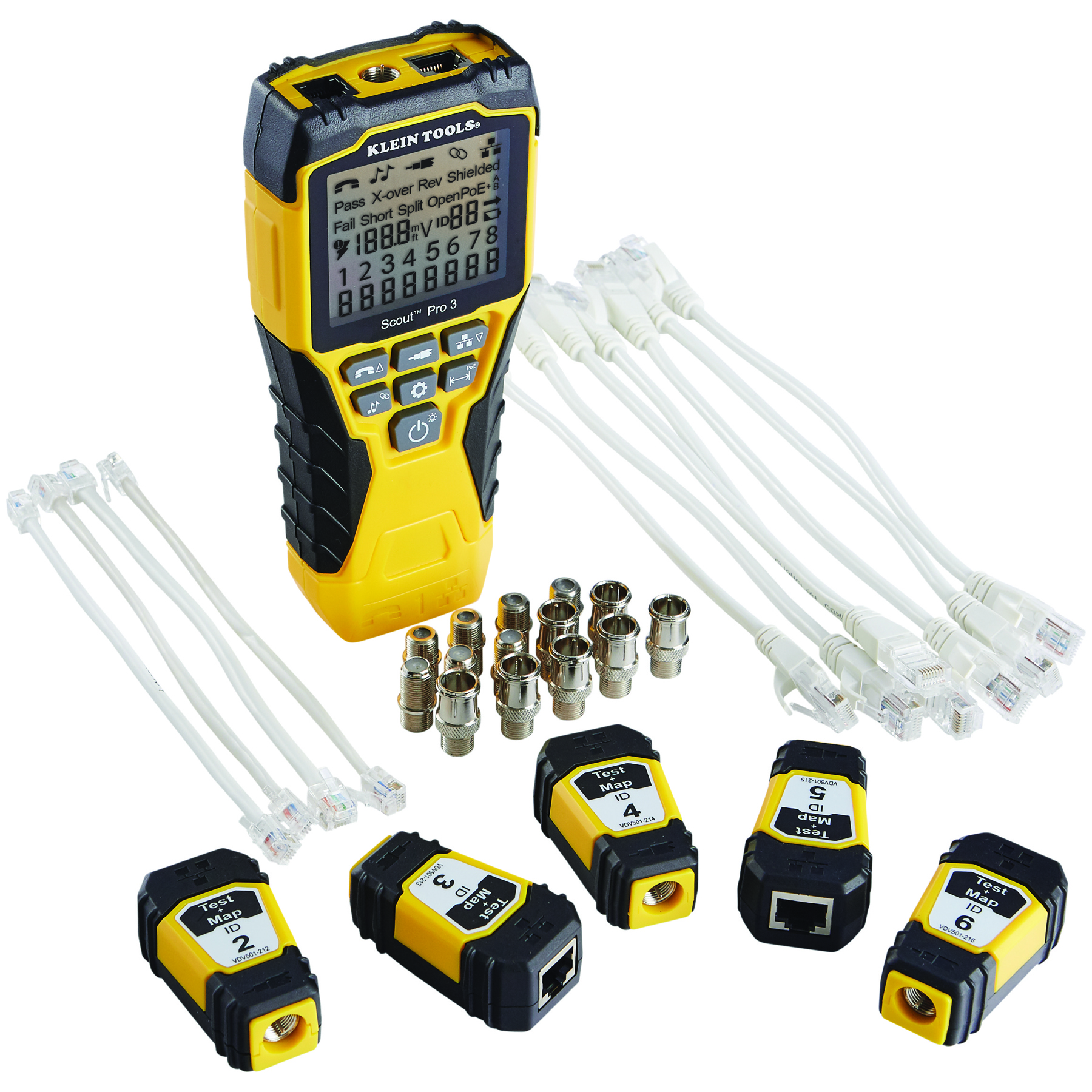

  • Includes 1 self-storing Test+Map remote (#1), 5 Test+Map remotes (#2-6), 7 female-to-female, 7 male-to-female coax barrel adapters, 7 RJ45 jumper cables (6-Inch), 2 RJ11, 2 RJ12 jumper cables (6-Inch)
  • Includes a 9V battery and convenient carrying case

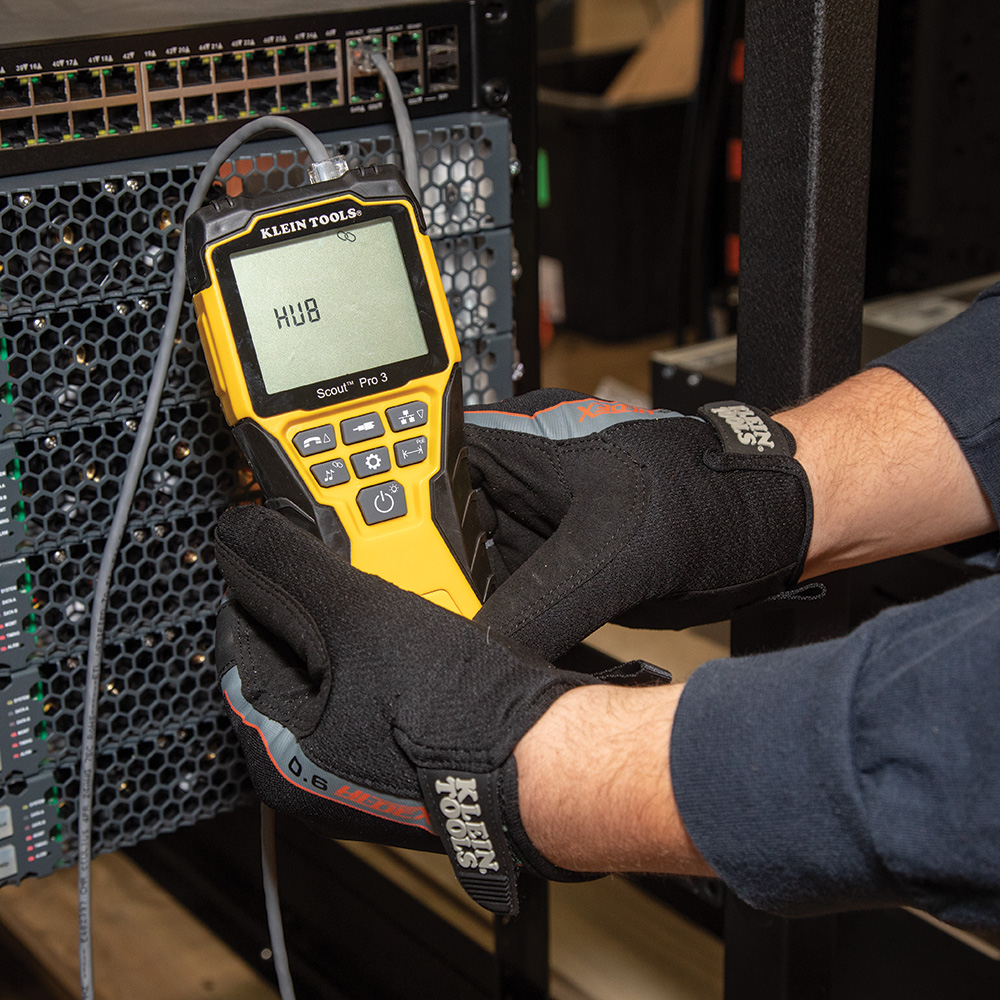

  • Hub blink mode to identify port location on a hub or a switch
  • 1 dockable smart remote, 5 loose smart remotes plus 7 female-to-female and 7 male-to-female coax adapters

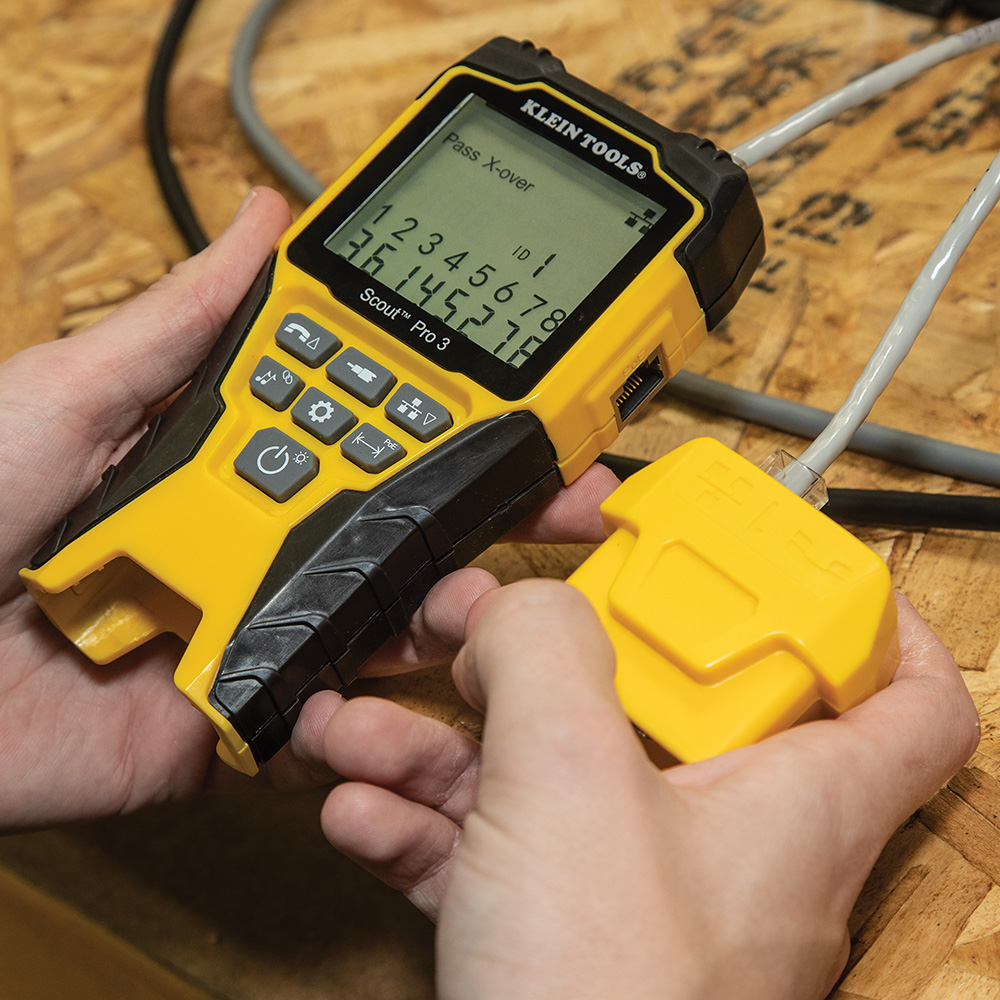

  • Backlit LCD screen displays cable length, wiremap, cable ID and test results

The Scout® Pro 3 Tester with Test + Map™ Remote Kit is a versatile cable tester that locates and tests voice, data and video cables. Use the self-storing remote and Test + Map™ remotes #2 - #6 for fast, accurate identification. Identify POE, POE+, A wiring, B wiring and voltage. This tester also measures cable length. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.

Twisted Pair, DATA, Voice, LAN, and Coaxial
Cable Testing
Special Features:
Measures Cable Length; Power over Ethernet; Backlit LCD; Hub Blink
Cable Type:

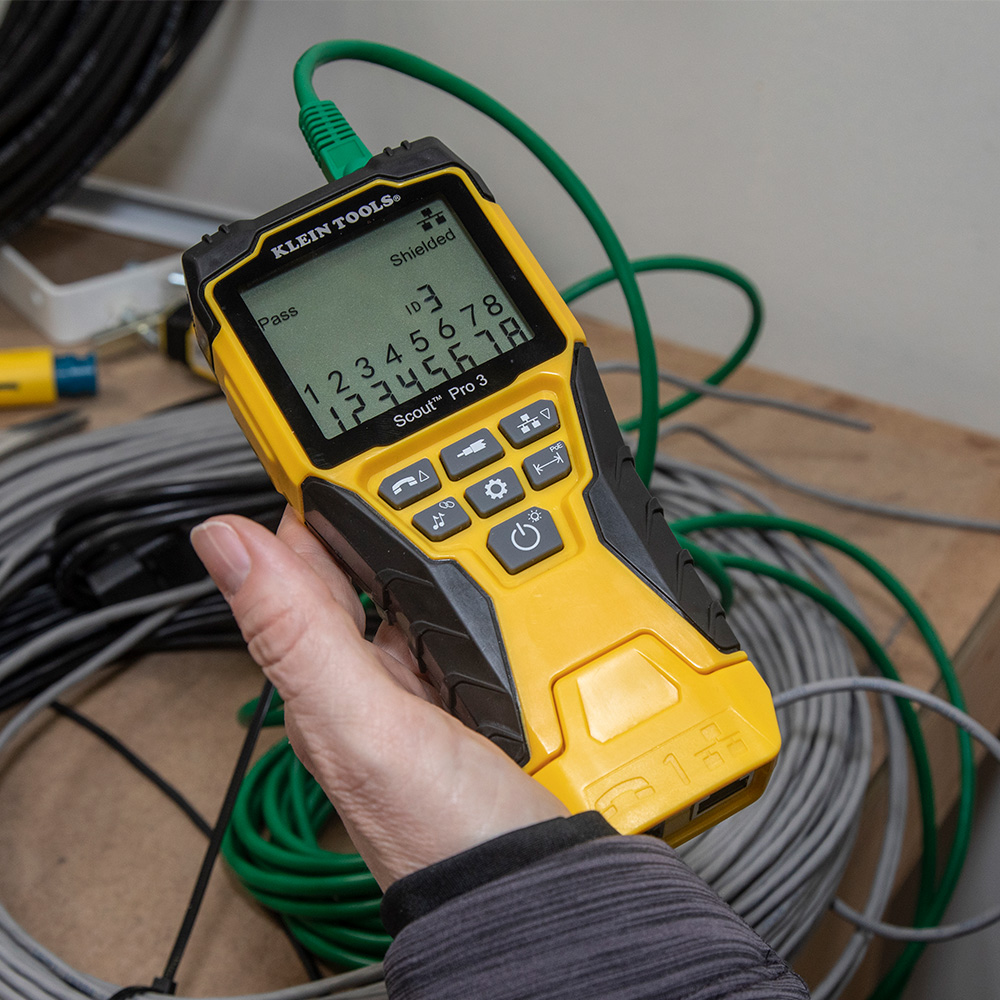

DATA:, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q
Overall Length:
7'' (17.8 cm)
Overall Height:
3.2'' (8 cm)
Overall Width:
1.5'' (3.8 cm)
Plastic and Metal
Test-n-Map ID Remotes:
(1) Self-Storing, (5) Test + Map™ Remotes (#2 - #6)
9V Alkaline
Battery Life:
Active: 50 hr
Drop Protection:
2 m
Supported Remotes:
Connection & Adapter Types:

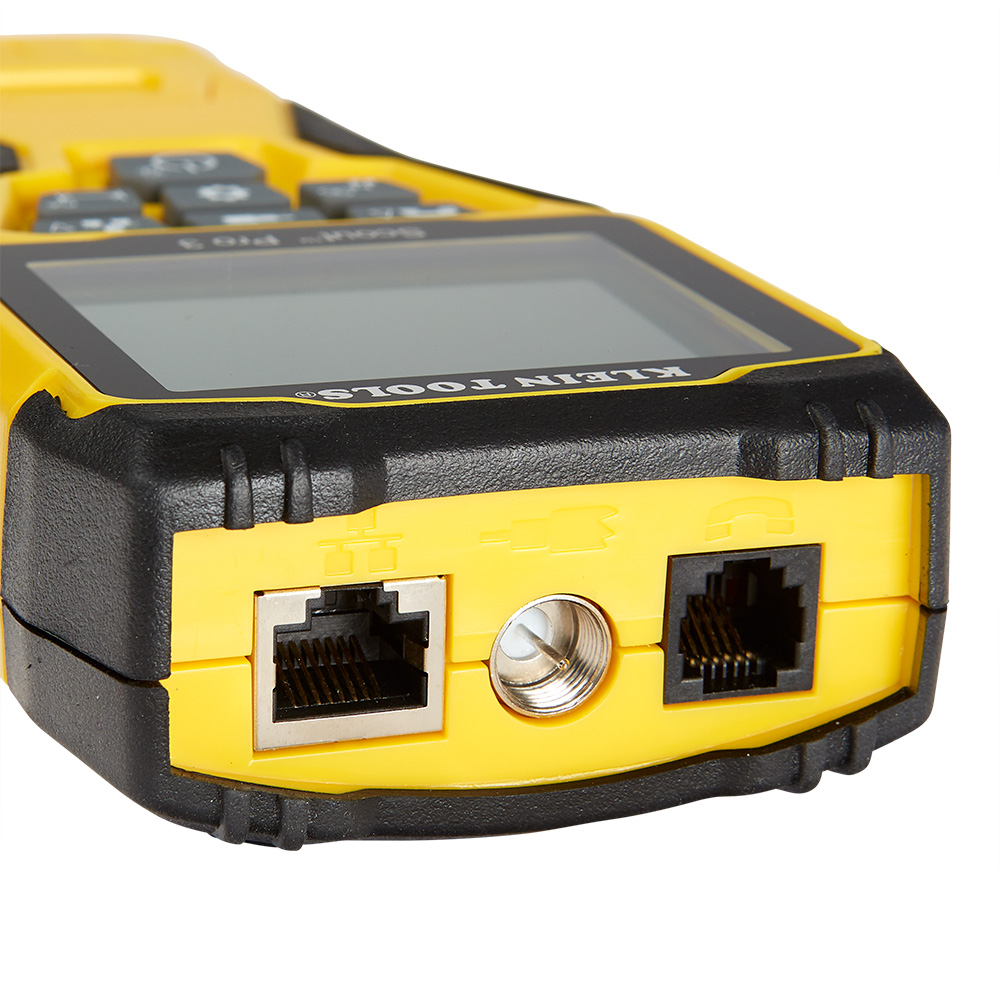

RJ11, RJ12, RJ45, Coax F
Backlit LCD
Multiple Style Tone Generator:
Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
Faults Detected:

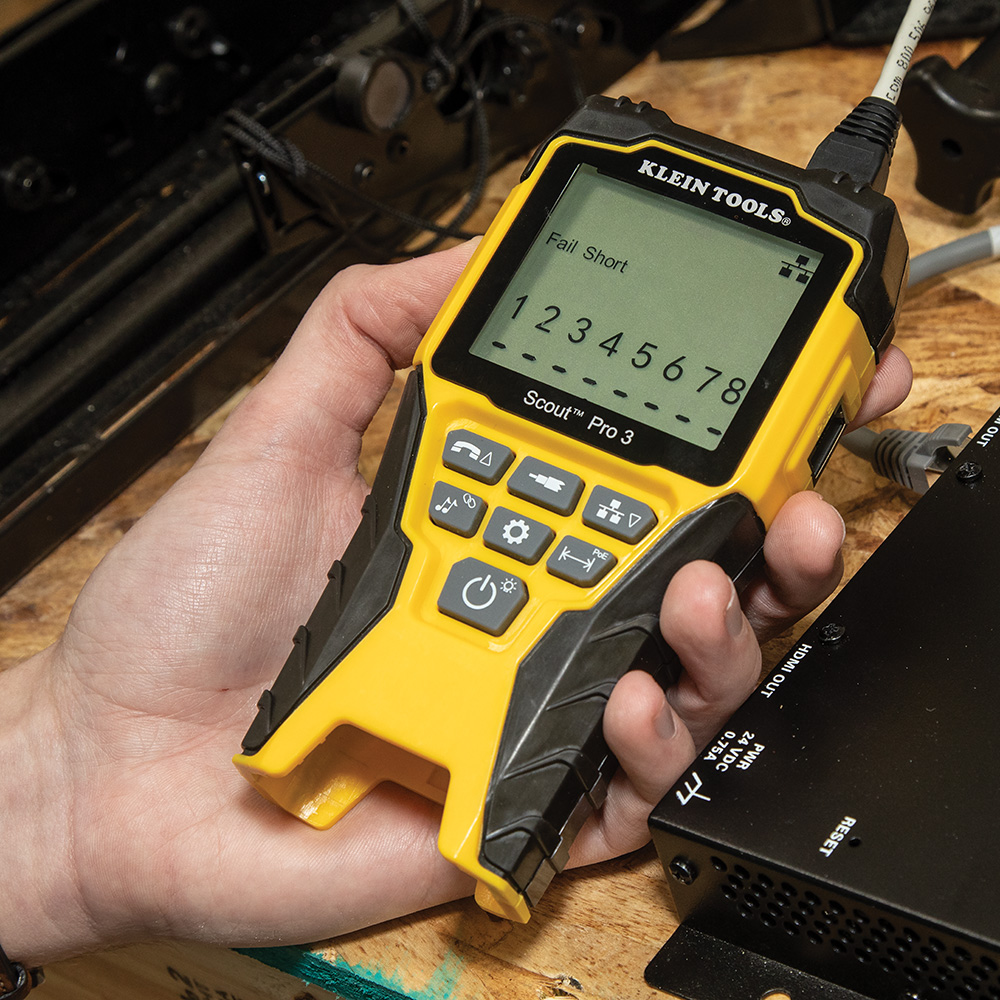

Open, Short, Miswire
Test & Measure Types:
Ethernet, Data, Coaxial
Length Measurement: +/- 5% (ft) or 5% m

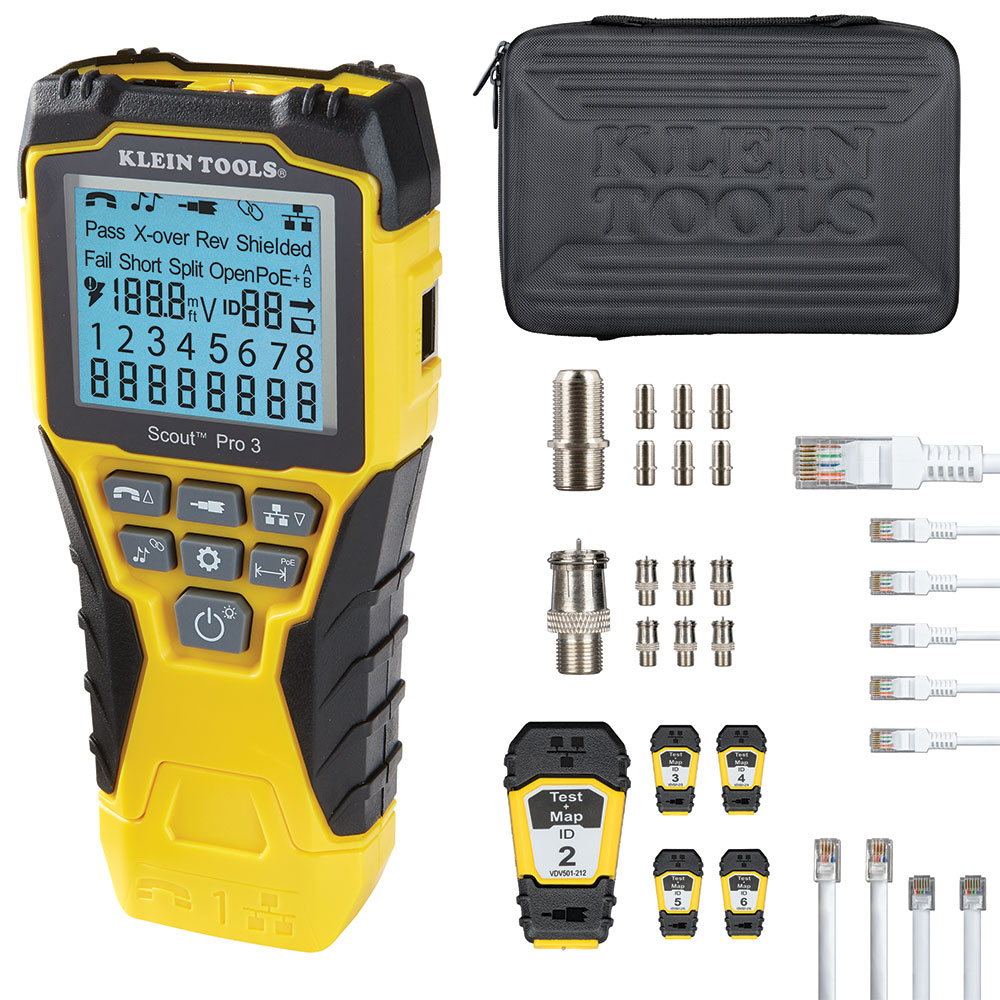

Tester, Self-storing Test + Map™ Remote (#1), 5 - Test + Map™ Remotes (#2 - #6), 7 - Coaxial Barrel Adapters (female-to-female), 7 - Coaxial Barrel Adapters (male-to-female), 7 - RJ45 Jumper, 2 - RJ11 Jumper, 2 - RJ12 Jumper, Carrying case, 9V alkaline battery
1.2 lb (0.5 kg)
Additional Information
Feature Icon klein/wp_ce.jpg
Feature Icon klein/wp_ukca.jpg
Feature Icon klein/wp_drop_protection-2m.jpg
  • Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
  • Always wear approved eye protection.
  • Do NOT use on energized circuits.
