3-Step Drill Bit, Double-Fluted, 7/8-Inch to 1-3/8-Inch

25960

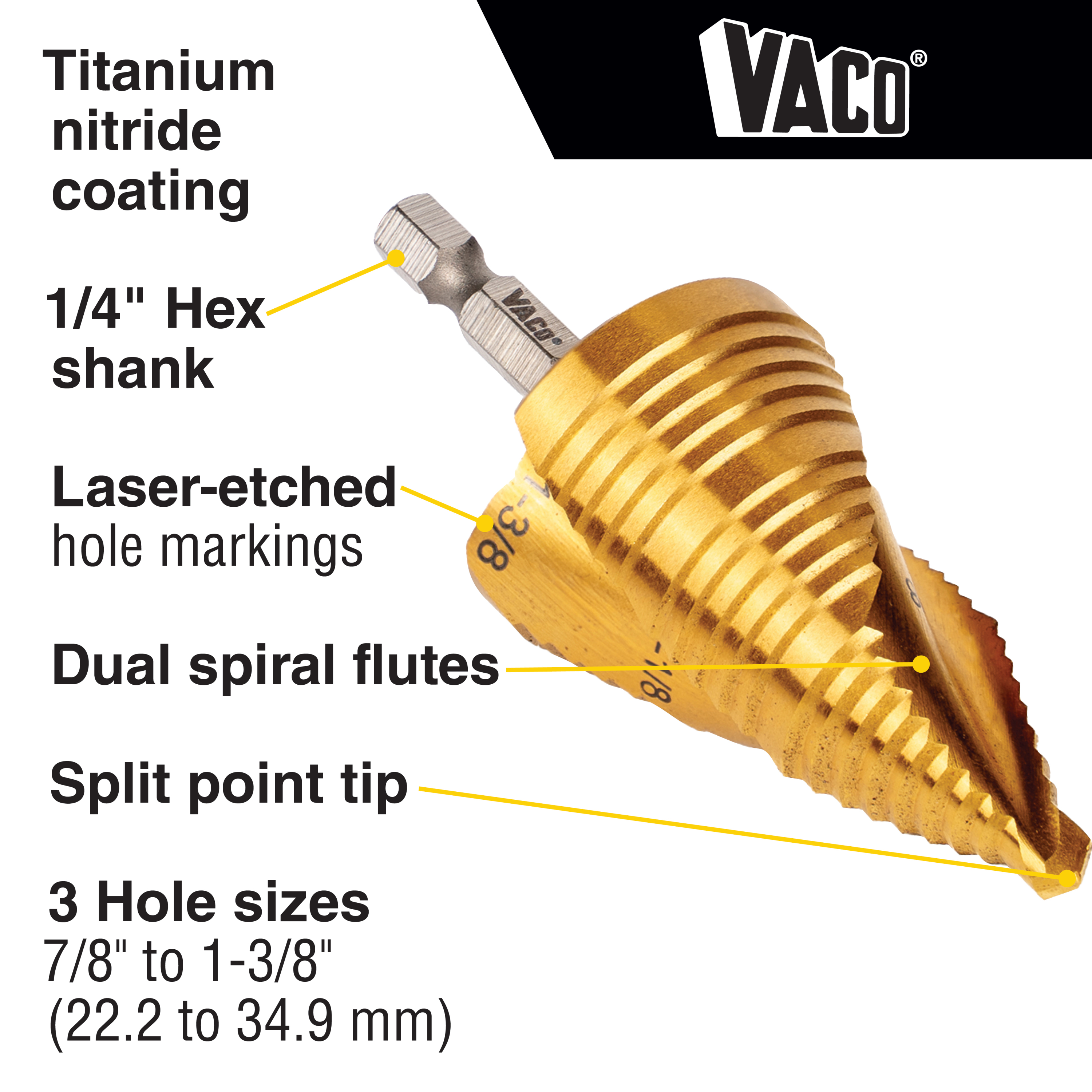

  • Step Drill Bit has 2 spiral flutes to remove chips and help pull the bit through material for faster cutting
  • Titanium nitride coating dissipates heat for longer bit life

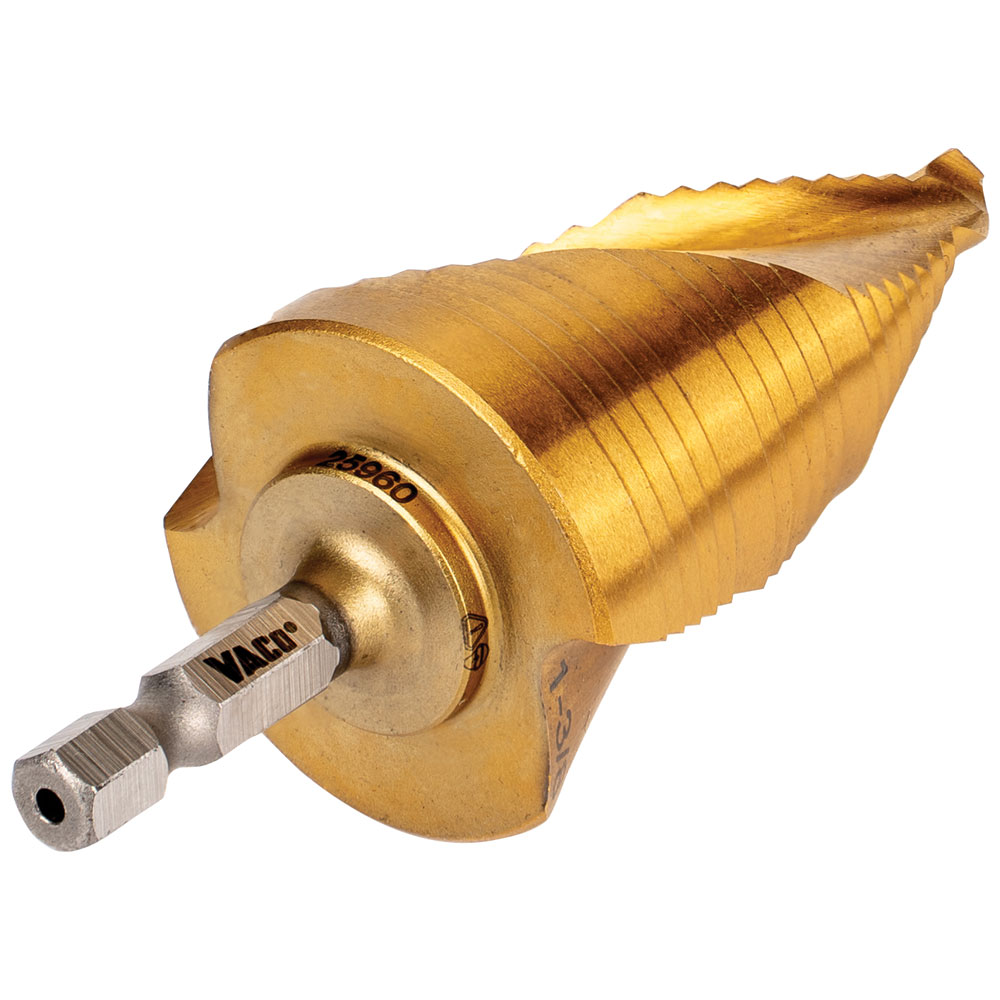

  • 1/4-Inch hex shank for firm, positive grip in impact driver and standard drill

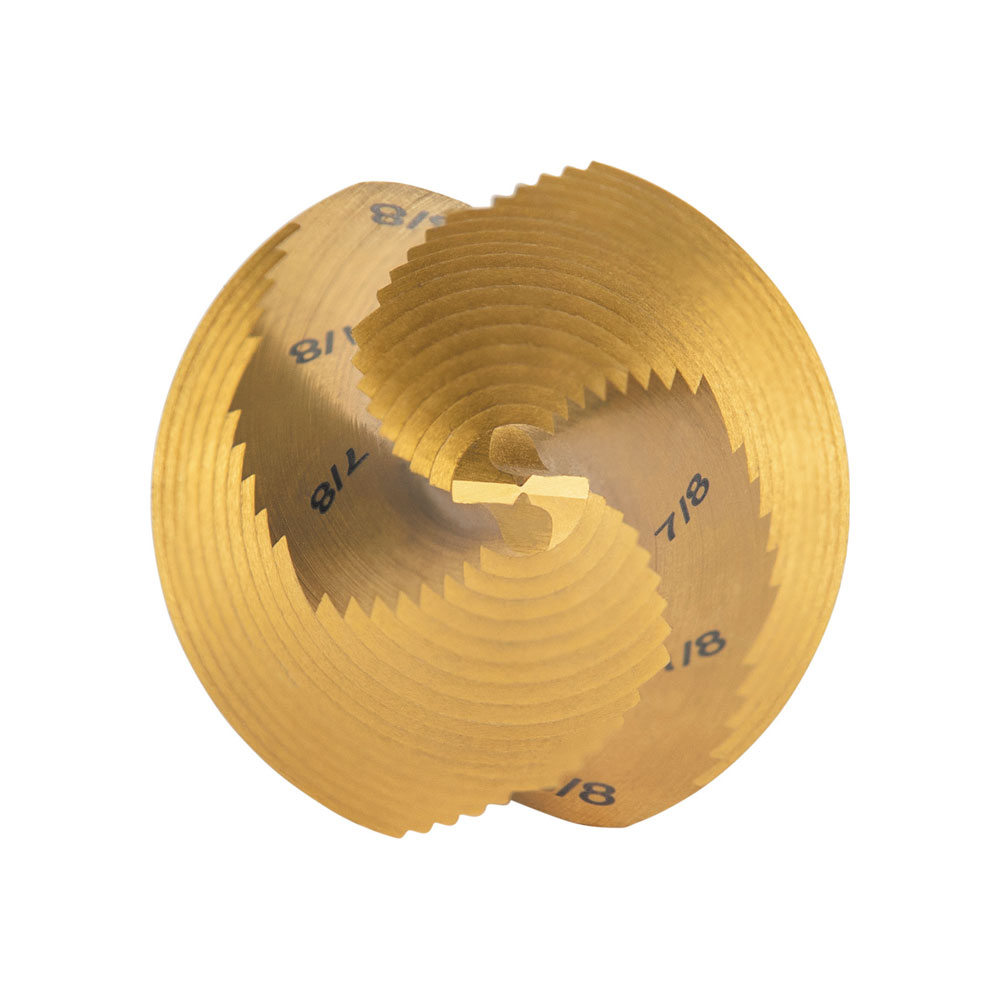

  • Split point tip quickly starts hole cuts and prevents drifting when pressure is added

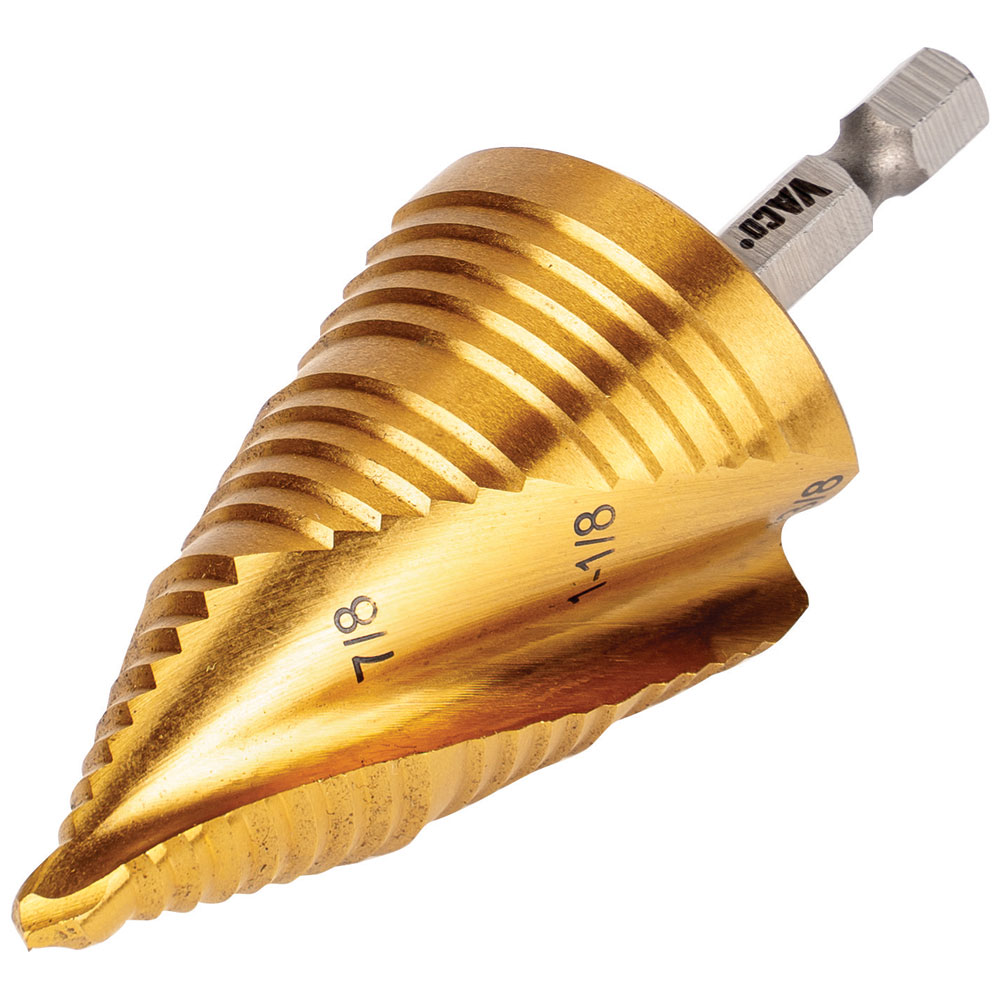

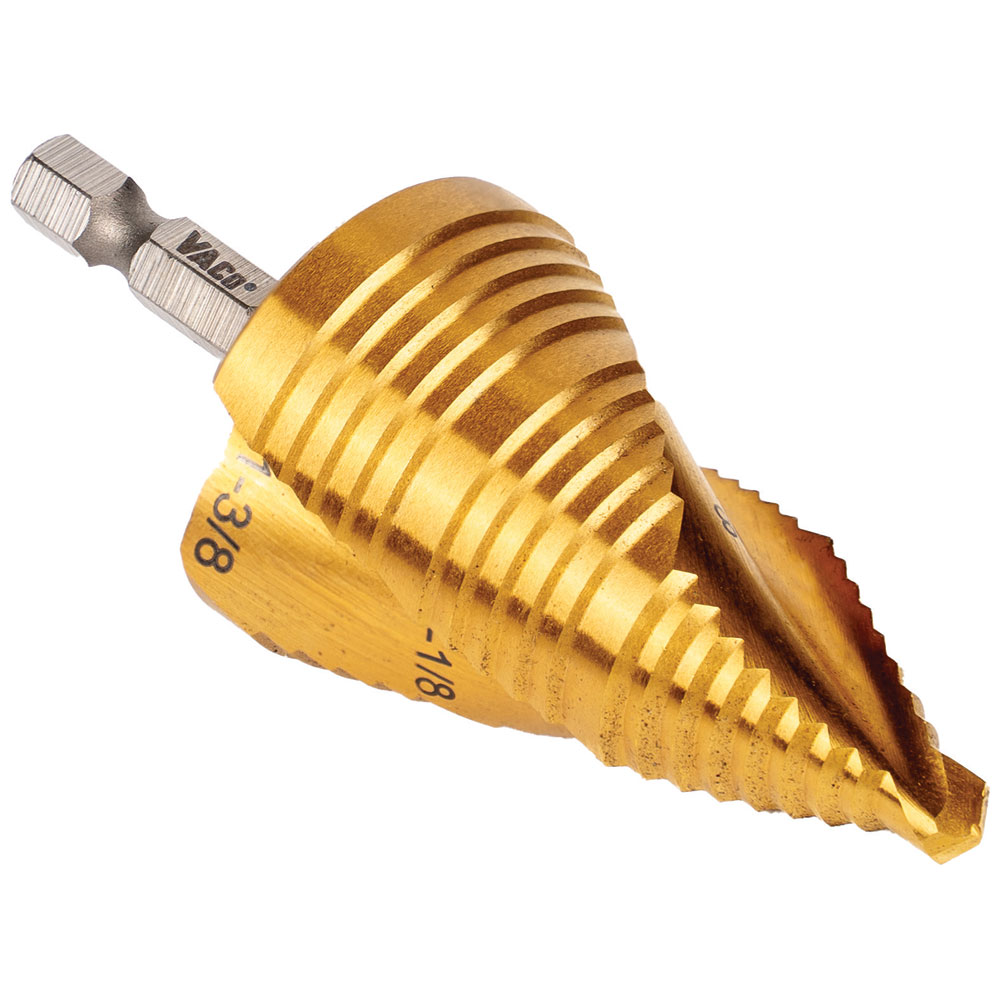

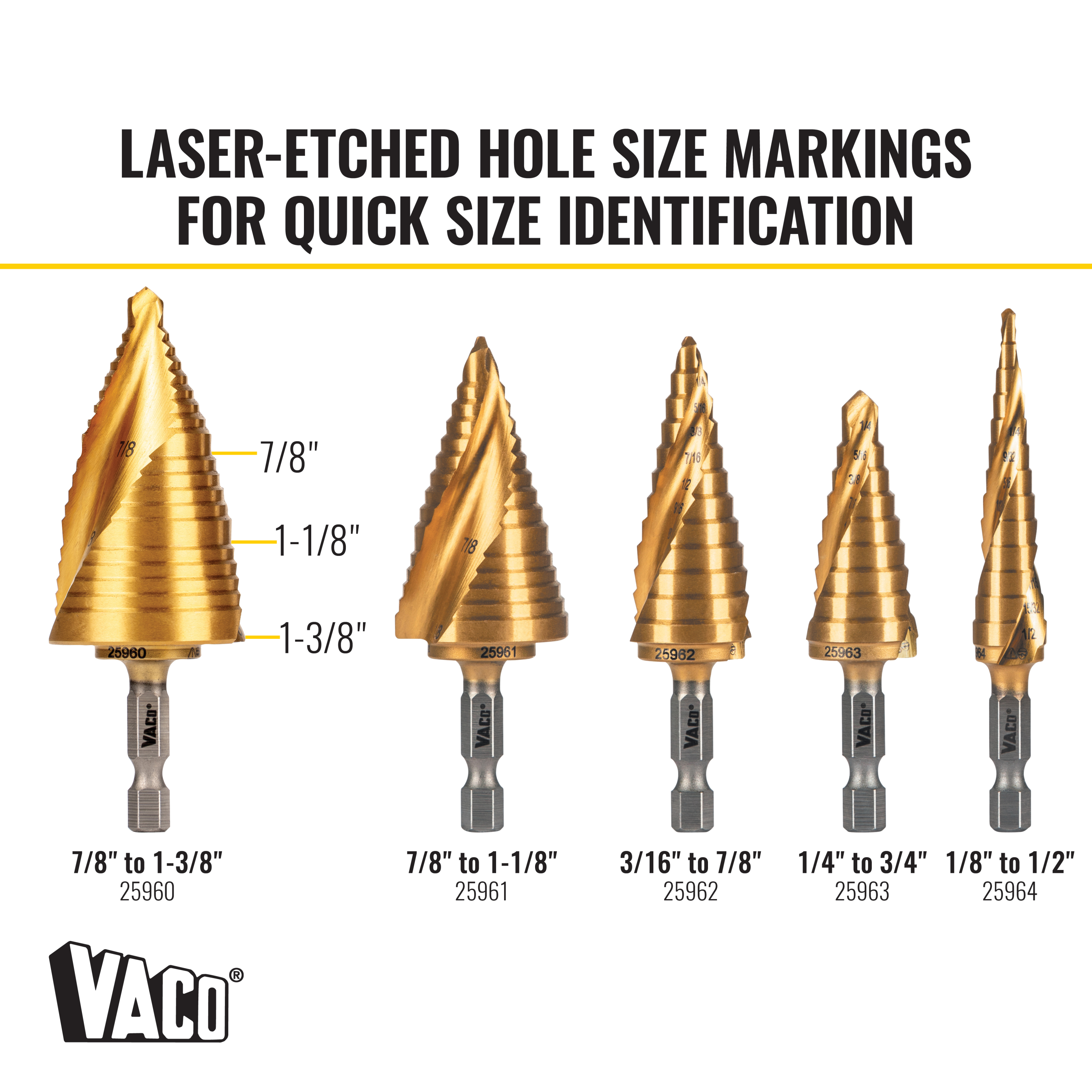

  • Laser-etched hole size markings for quick size identification
  • For use on steel (up to 16 gauge), wood, plastic, and aluminum
  • 3 hole sizes
Videos
Downloads
Images
High-Res JPG 25960_photo_b.jpg
Interactive Catalog

Dual Spiral Flutes on VACO Step Drill Bits help pull the step bit through material for faster cutting. The Titanium Nitride coating extends the life of the cutting edge. Convenient to use with an impact driver and drill, the 1/4-Inch hex shank provides a firm, positive grip. Available in five step bit sizes with commonly used hole sizes for steel (up to 16 gauge), plastic, aluminum, and wood.

Specifications
Type:
Step Drill Bit
Application:
Multi-Material Drilling
Special Features:
TiN Coating, Impact Shaft, Dual Spiral Fluting
Shank Type:
1/4'' Hex
Flute Type:
Spiral
Overall Length:
1.38'' (3.5 cm)
Overall Height:
3.57'' (9.1 cm)
Overall Width:
1.38'' (3.5 cm)
Material:
High Speed Steel
Coating:
Titanium Nitride
Quick Reference:
#15
Number of Holes:
3
Size:
7/8'' to 1-3/8'' (22.2 to 34.9 mm)
Weight:
6.88 oz (195 g)
UPC:
092644259609
Additional Information
Warnings
  • Always ensure that you and persons in the vicinity wear approved eye protection.
  • Read and follow safety instructions in power tool owner's manual.
