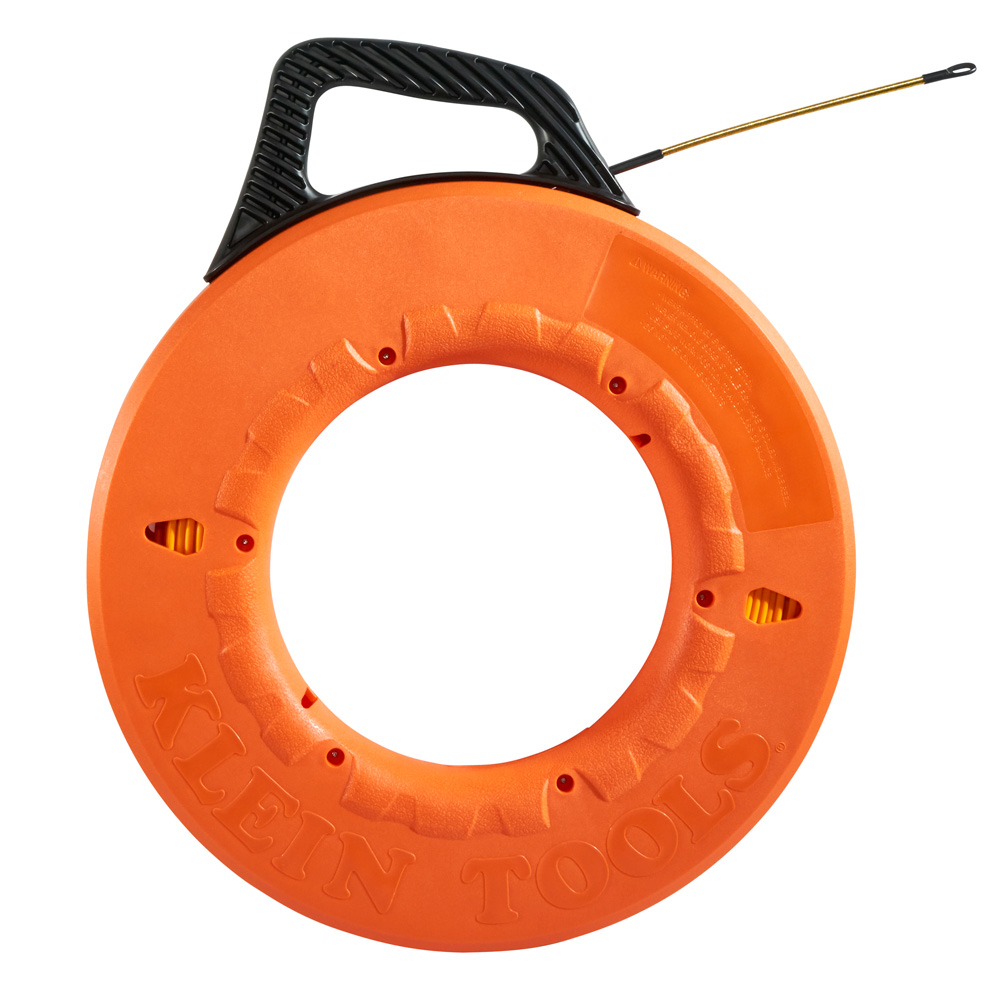

Fiberglass Fish Tape with Spiral Leader, 200-Foot

56014

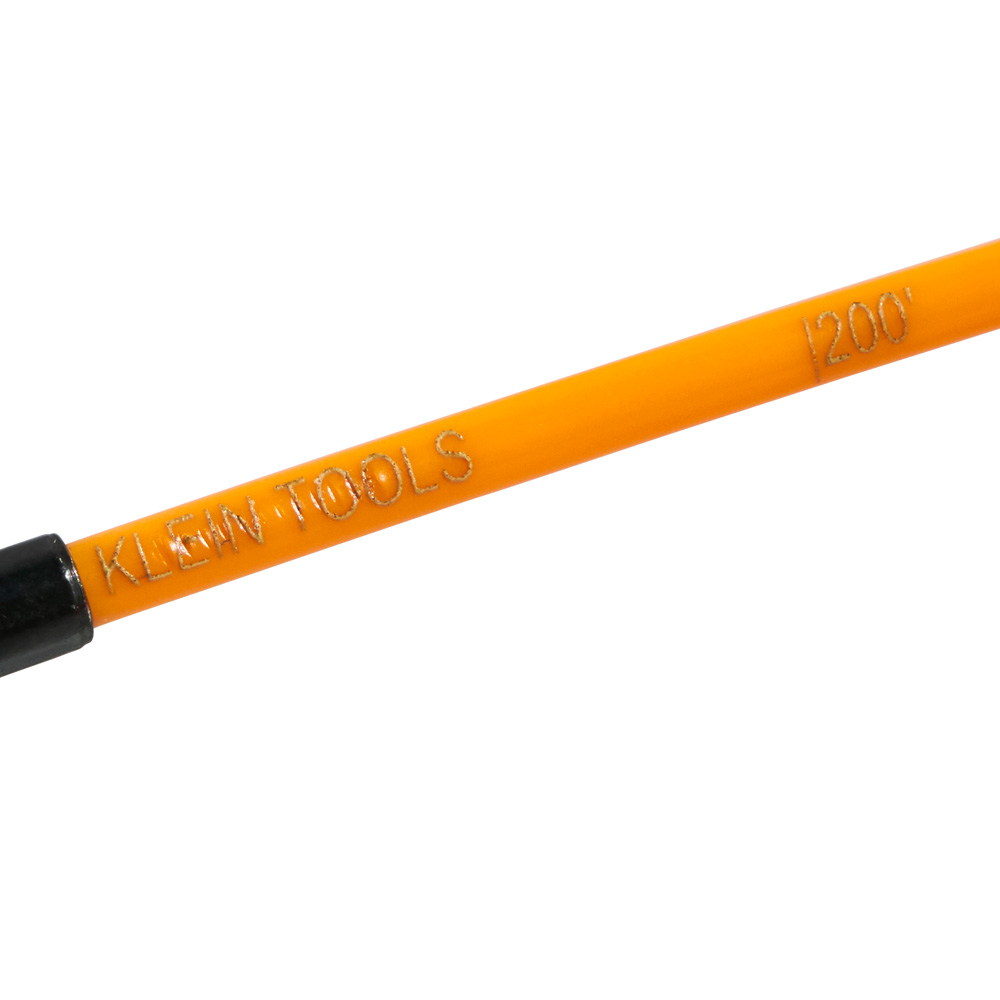

  • Permanent, laser etched 1-foot increments on the tape allow you to more accurately measure the depth of conduit runs and determine the amount of tape left to pay out
  • Non-conductive, fiberglass fish tape slides easily over existing wires and through multiple bends
  • The lightweight and strong fiberglass tape resists harsh elements and is strength rated up to 500 pulling pounds
  • The 17-Inch case diameter means you can reel in 10-percent more tape in a single revolution vs. a 16-Inch (406 mm) case
  • Made in USA

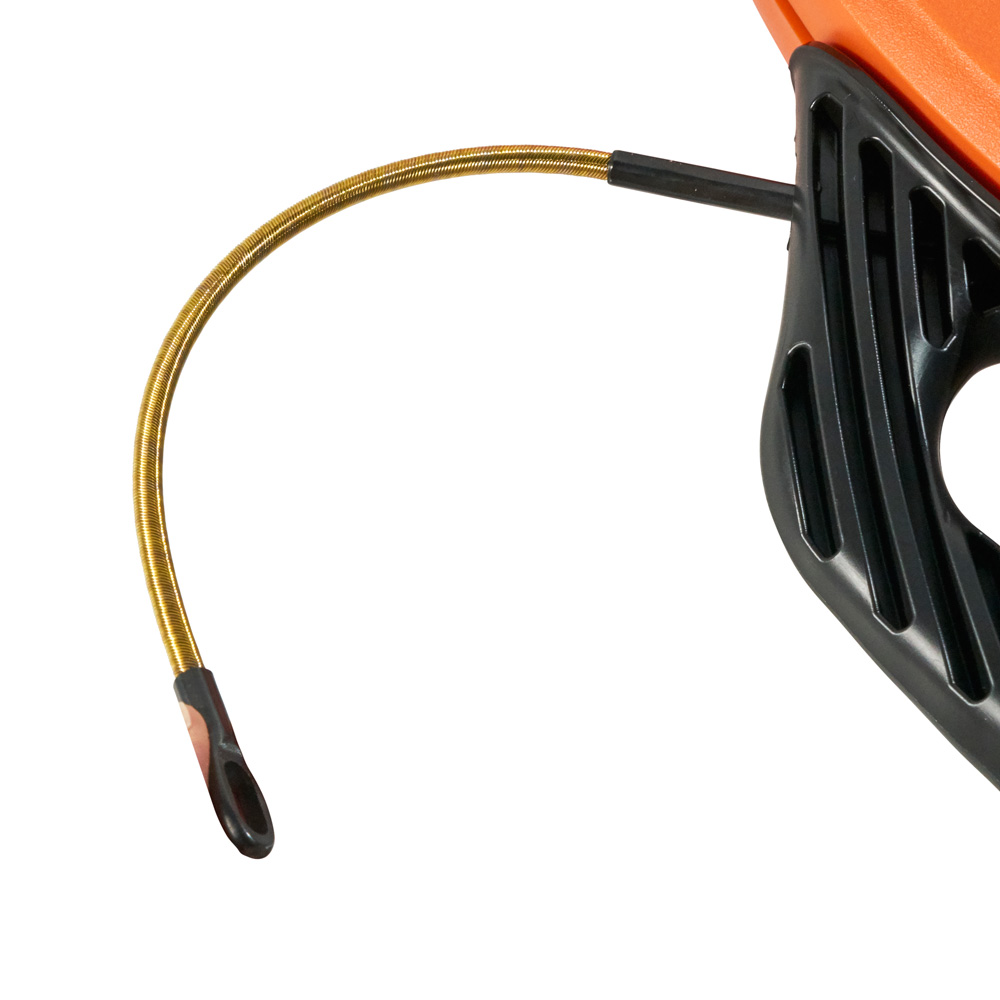

  • Durable 7-Inch leader helps push through crowded conduit
  • Raised finger grips help transfer 100-percent of the winding power from your hand and fingers

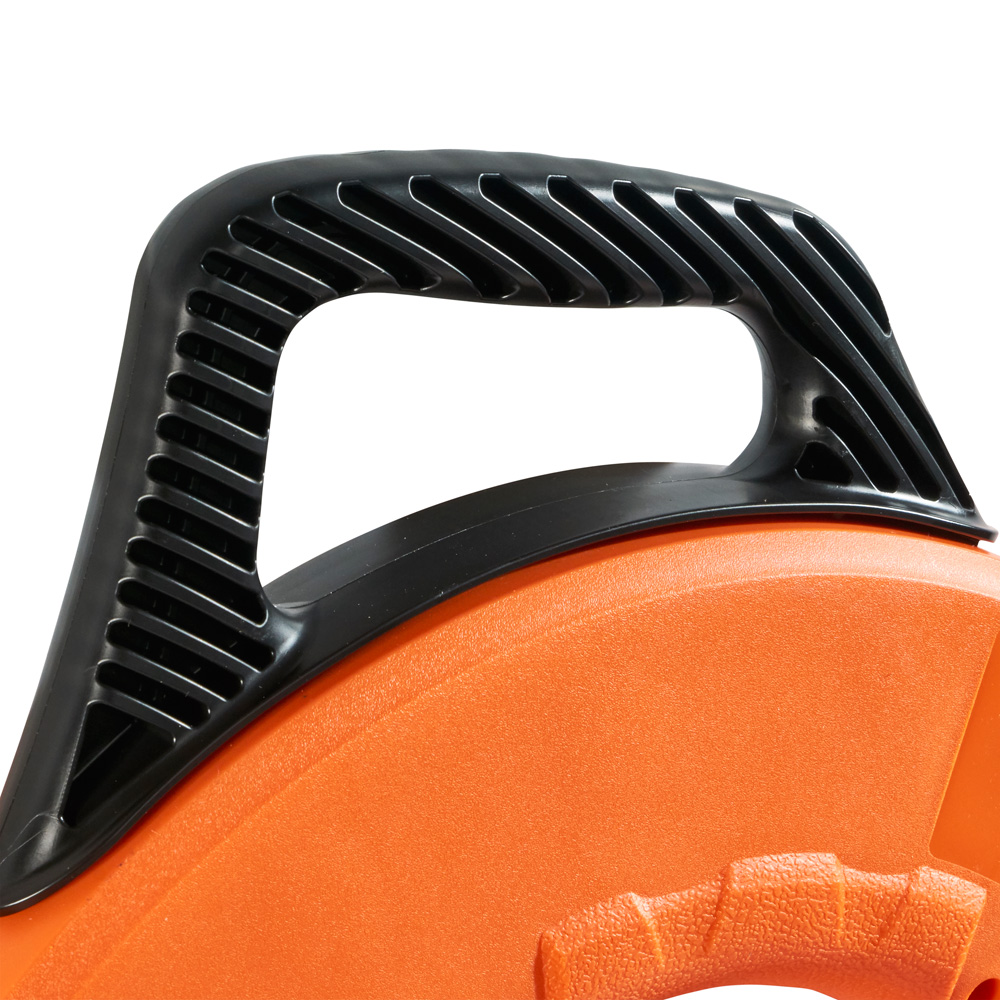

  • The unique sloped handle optimizes the position of your hand for quick hand-over-hand rewinds and allows a more level payout of tape on the backswing while feeding conduit
  • Repair kit available (Cat. No. 56115)

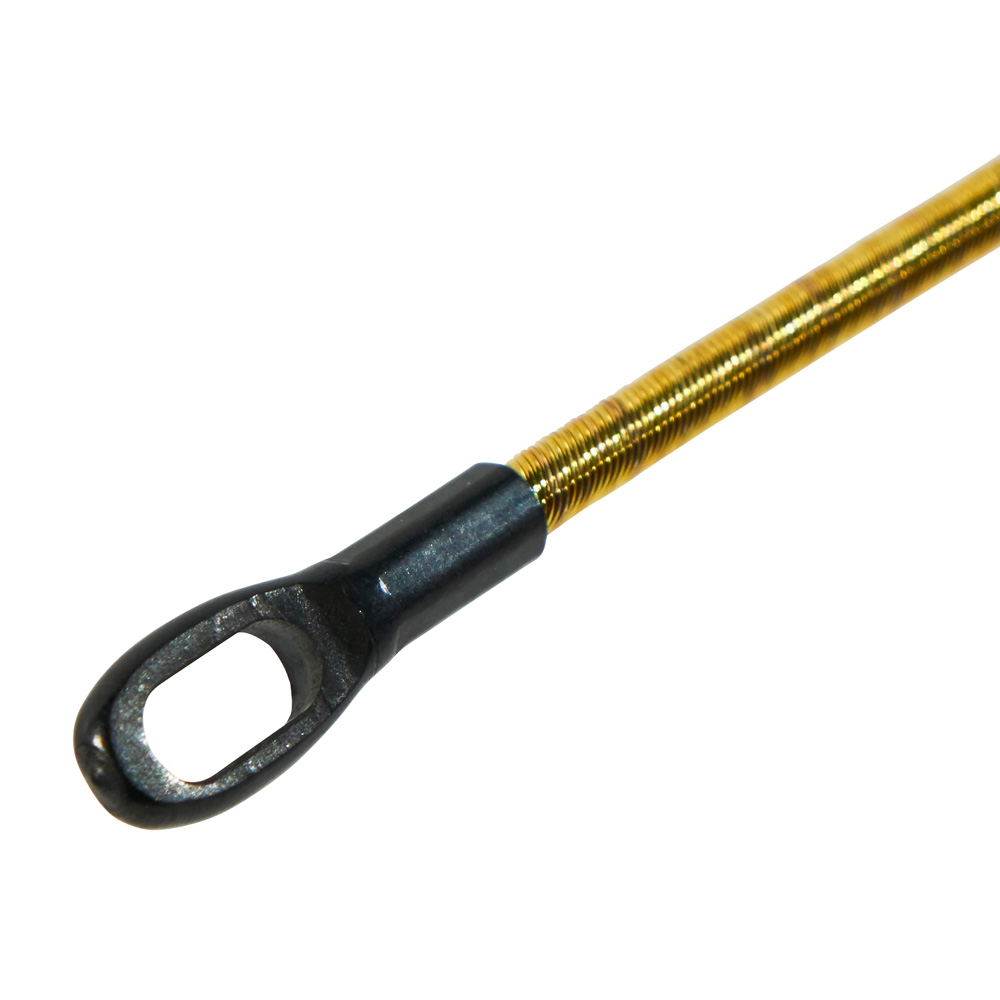

  • Replacement eyelets (Cat. No. 56116) and spiral leaders (Cat. No. 56120) available
Videos
Images
High-Res JPG 56014_photo.jpg
PNG 56014.png
Interactive Catalog

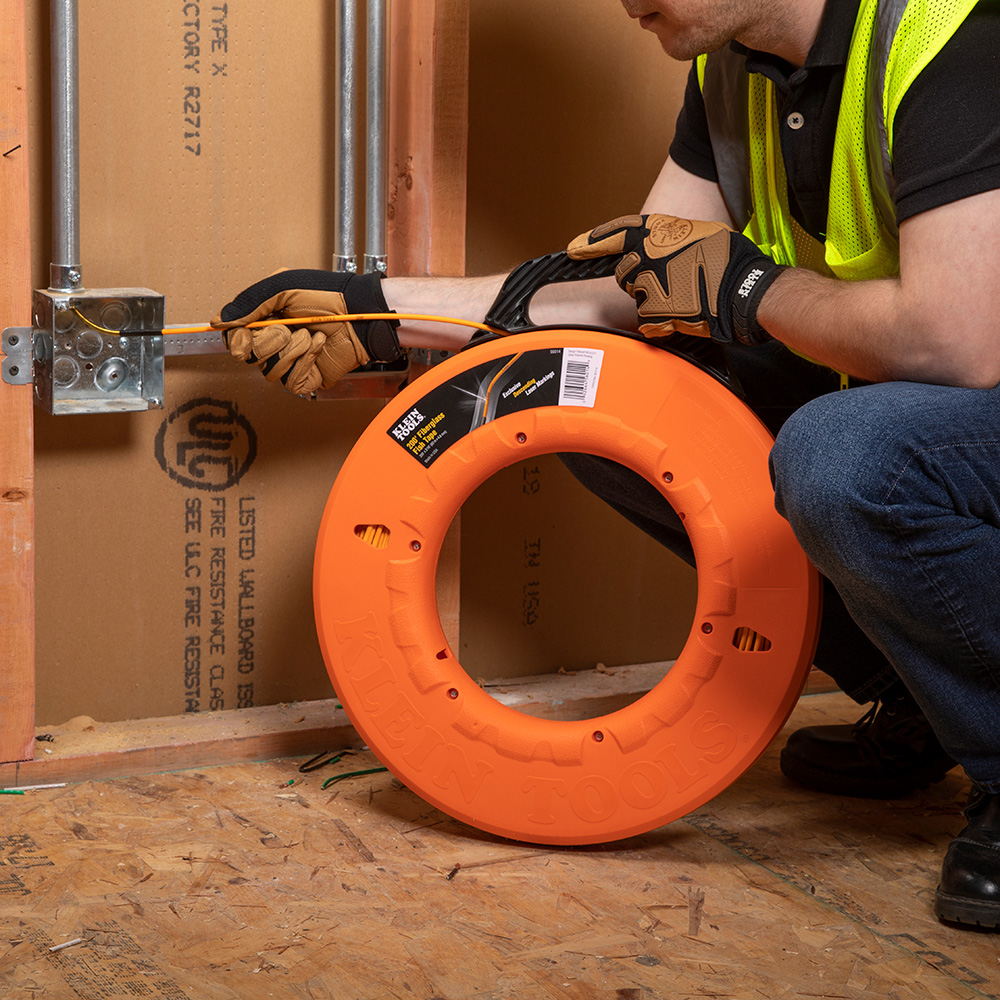

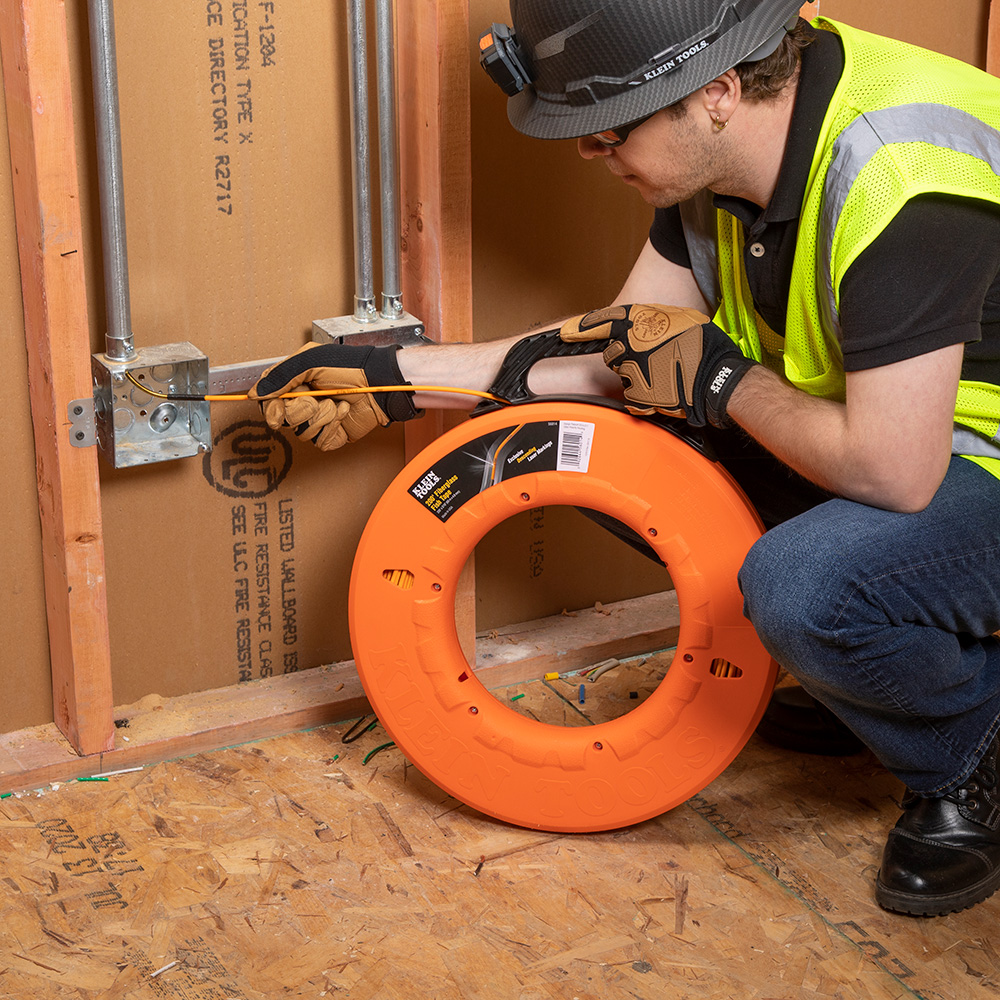

Designed for even longer conduit runs, the Klein Tools 200-foot (60.96 m) Fiberglass Fish Tape is flexible enough to glide over existing wires in crowded conduit, but stiffer than other non-conductive fish tapes. The 17-Inch (432 mm) case diameter allows user to reel in 10-percent more tape in a single revolution than 16-Inch (406 mm) diameter fish tape cases, saving time and effort.

Specifications
Material:
Fiberglass
Tape Size:
200' x 3/16'' (60.96 m x 0.5 cm)
Diameter:
17'' (43.2 cm)
Tape End:
Spiral Steel Leader
Weight:
6.2 lb (2.8 kg)
UPC:
092644560149
Additional Information
Warnings
  • Wear approved eye protection when feeding, pulling or rewinding fish tape.
  • Although fiberglass fish tape itself is non-metallic, its metallic tip and leader are conductive and could be grounded against conduit. Do NOT use on or near live electrical circuits.
  • Do NOT pull a fiberglass fish tape with any type of mechanical fish-tape puller. A mechanical puller will severely damage the tape, and could lead to personal injury.
  • Use a safe work position to avoid loss of balance when using fish tape.
  • Do NOT bend a fiberglass fish tape to a radius smaller than 3'' (76 mm) or the tape may break.
  • Never remove screws while fish tape is coiled inside reel.
