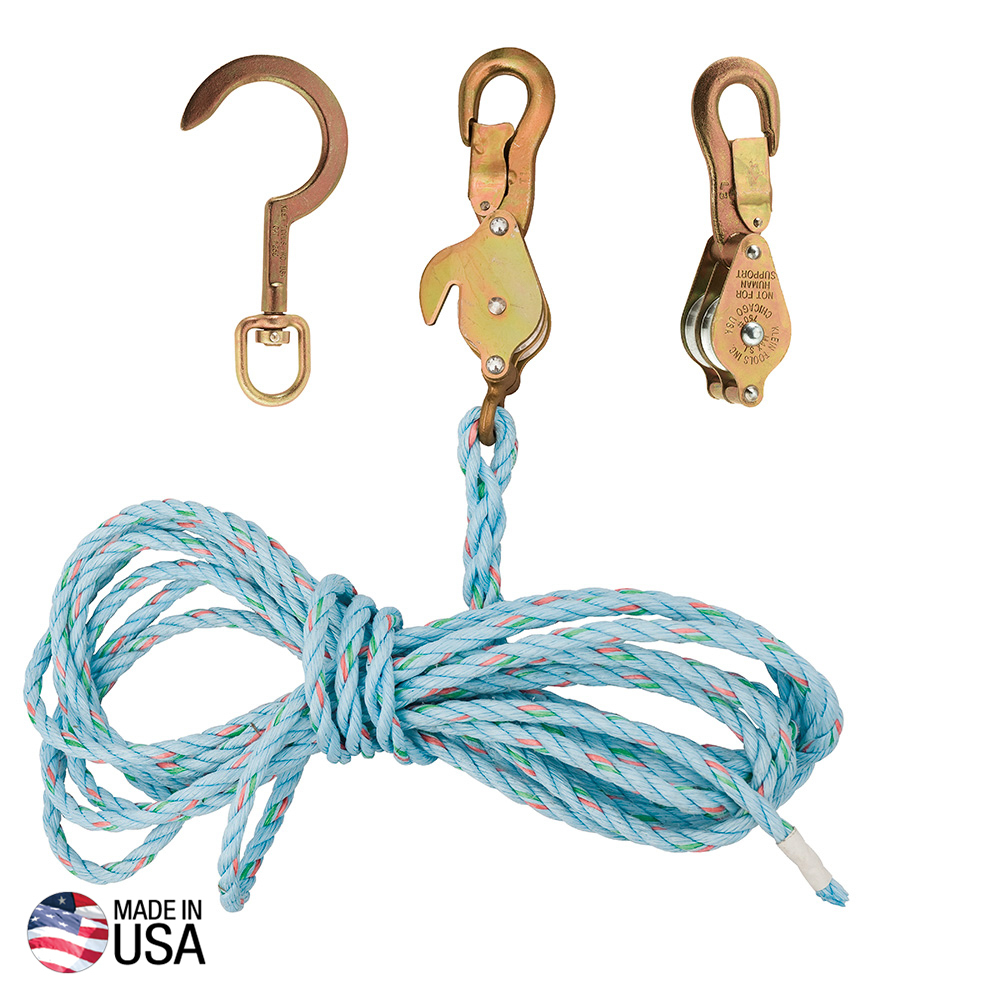

Block and Tackle 259 Anchor Hook Spliced

1802-30SSR

  • Light, galvanized-steel shell blocks are fitted with snubbing hooks to hold the load
  • Sheaves are strong yet lightweight aluminum alloy with all-bronze bushings
  • Swivel hook Cat. No. 259
  • Hooks fit under insulator and engage pin on cross arm
  • 3/8-Inch (10 mm) diameter rope
  • 25-Foot (7.62 m) rope length
  • Maximum safe load is 750-pound (340 kg)
  • These are NOT occupational protective hooks. NOT for human support
Downloads
Images
JPG (High Resolution) 1802-30s-sr_photo.jpg

Specifications
Overall Length:
12.15
Overall Height:
4.95
Overall Width:
4.5
Material:
Galvanized-Steel Shell Blocks, Aluminum Alloy Bushings, Nylon Rope
Hook Type:
Standard
Rope Material:
Nylon
Rope Diameter:
3/8'' (9.53 mm)
Rope Length:
25'
Maximum Safe Load:
750 lb (340 kg)
Included:
268 Block
Weight:
2.8 lb (1.3 kg)
UPC:
092644480256
Additional Information
Warnings
  • These are NOT occupational protective devices. Do NOT use for human support.
