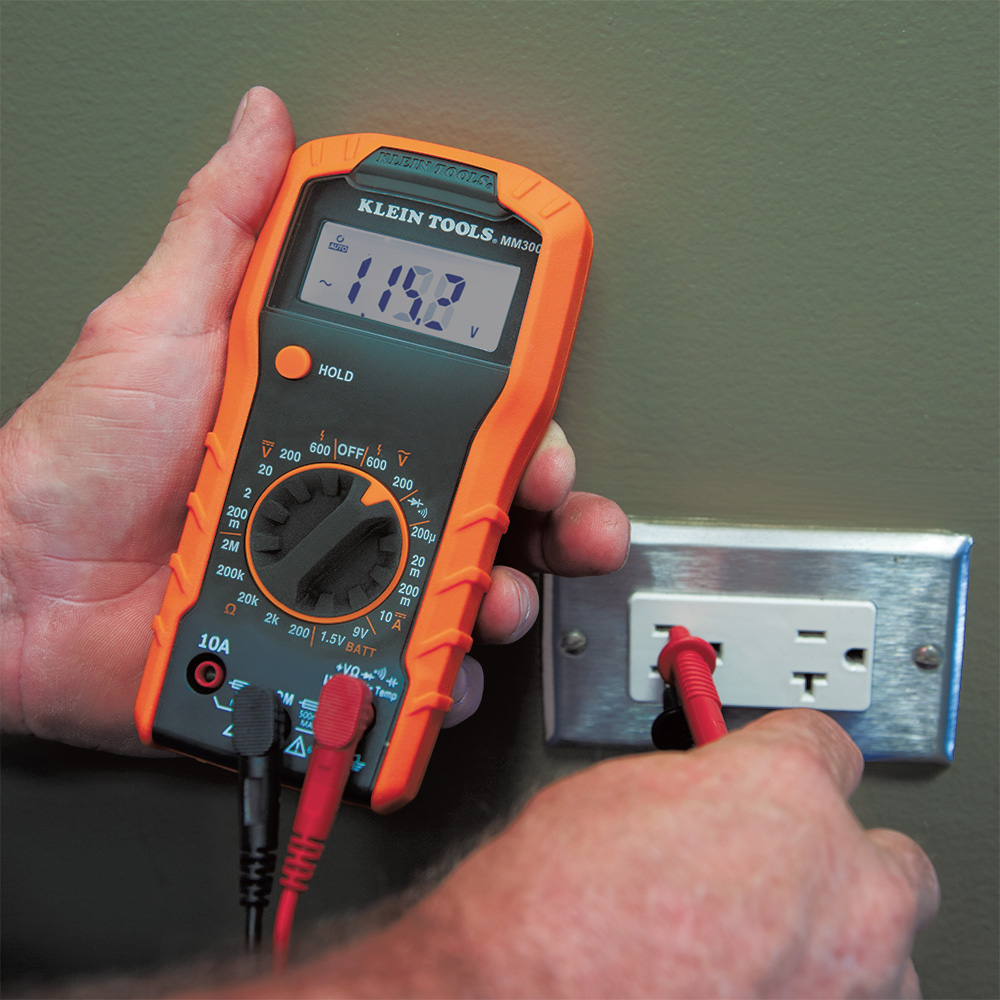

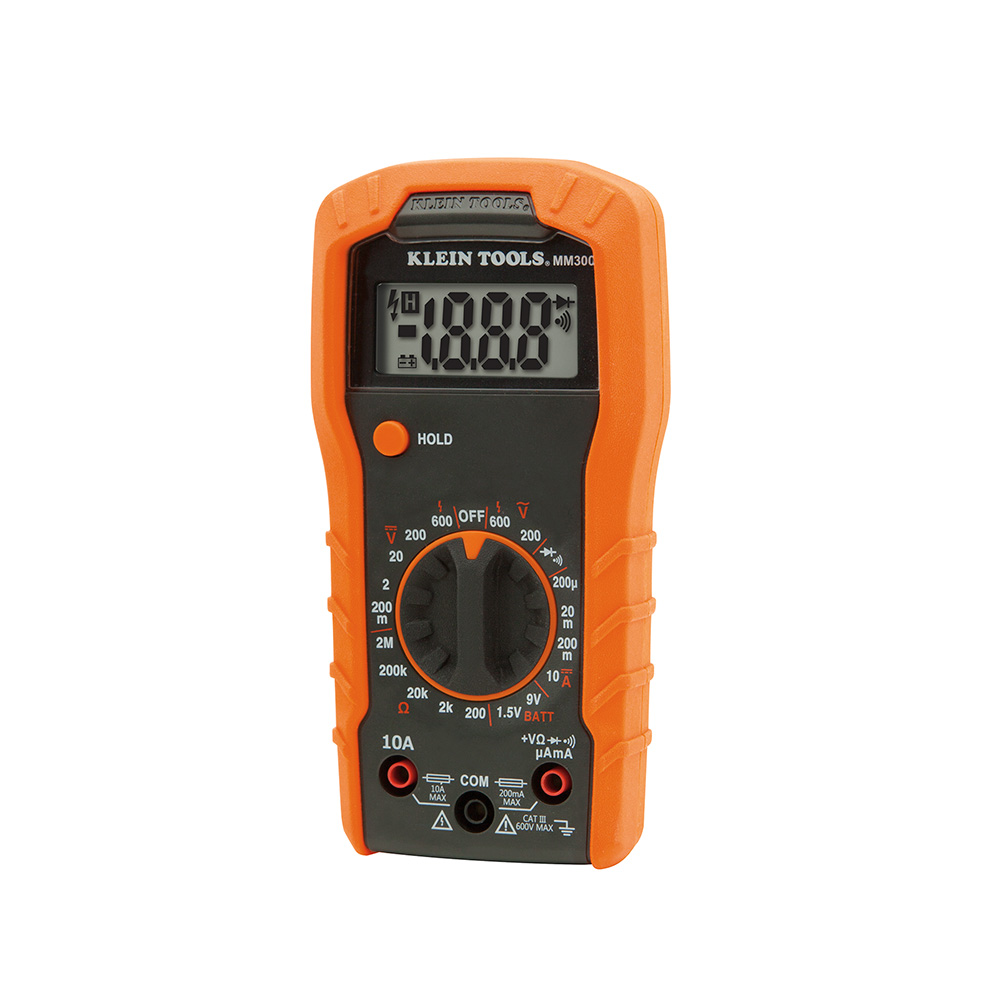

Digital Multimeter, Manual-Ranging, 600V

Cat. No.:
MM300
Product Features
Measures up to 600V AC/DC voltage, 10A DC current and 2MΩ resistance
Tests batteries, diodes and continuity
Built to withstand a 3.3' (1m) drop and withstand daily wear and tear on the job site
For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations
CAT III 600V safety rating
Low battery indicator and easily accessible battery compartment

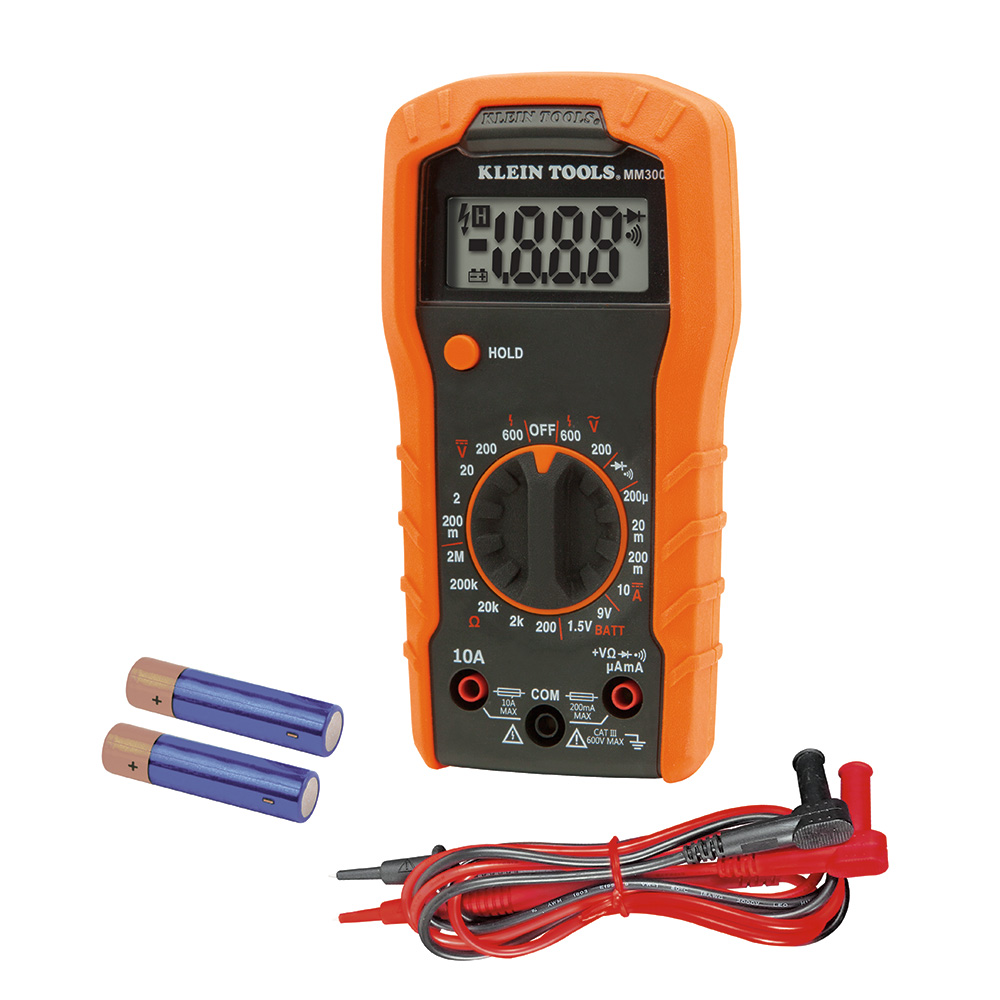

Includes test leads and batteries
Specifications

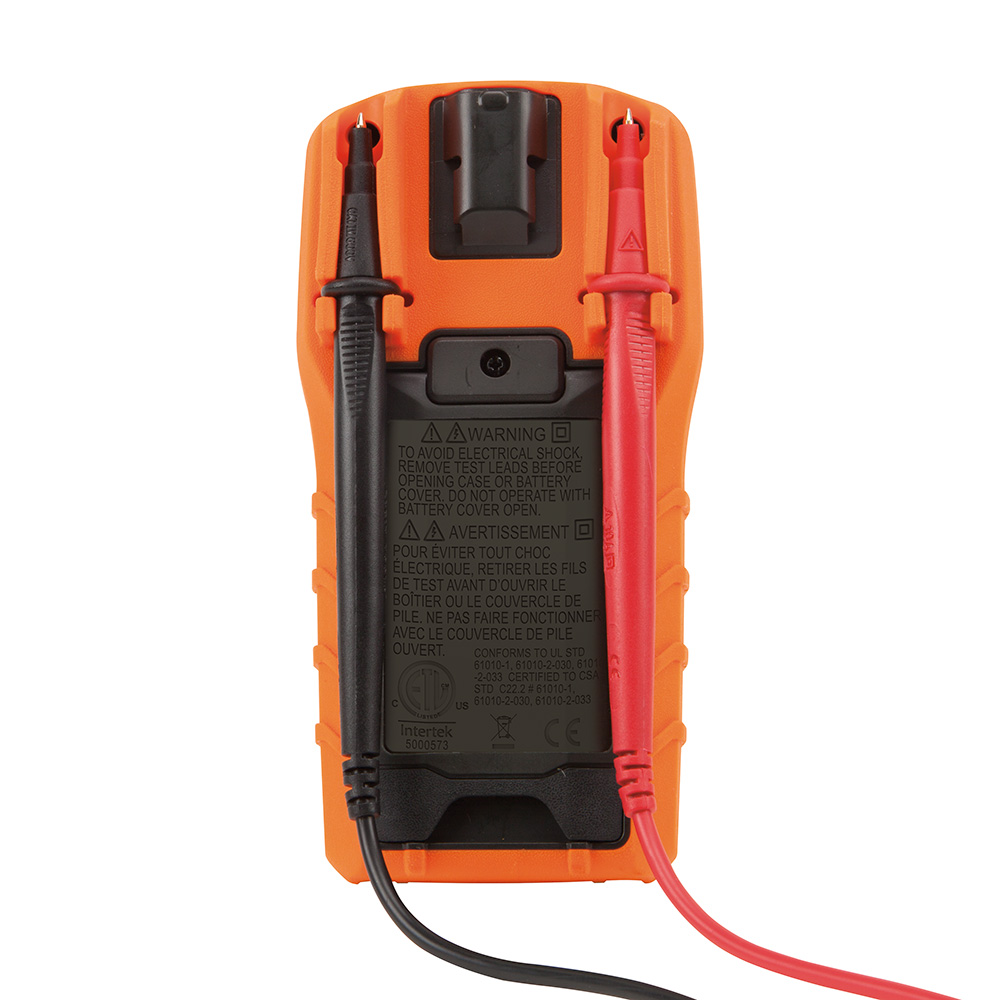

Batteries:
2 x AAA
Drop Protection:
3.3 ft (1 m)
Display:
2000 Count LCD
Functions:
Measures up to 600V AC/DC voltage, 10A DC current and 2MΩ resistance. Tests batteries, diodes and continuity
Voltage:
600V AC; 600 V DC
Current:
10A DC
Ohms (Resistance):
20MO
Standard:
CAT III 600V; CE Certified
Included:
Test Leads and Batteries
Overall Length:
6'' (152.4 mm)
Overall Height:
1-25/32'' (45.2 mm)
Overall Width:
3-1/6'' (77.8 mm)
Weight:
0.51 lb (0.23 kg)
UPC:
092644690198
Videos

Downloads
Warnings

Do not attempt to measure resistance or continuity on live circuits.

Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.

Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.

Before each use verify meter operation by measuring a known voltage or current.
