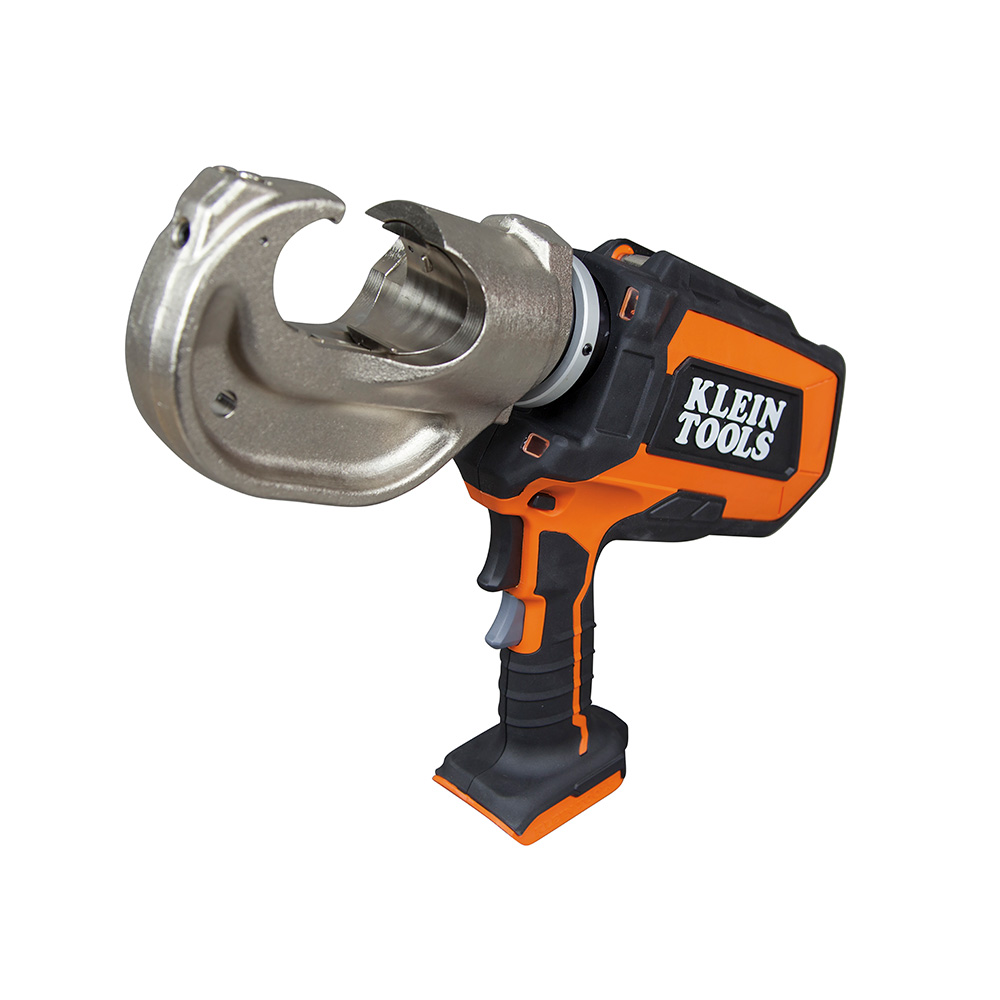

Battery-Operated 12-Ton Crimper Kit

BAT20-12T1651

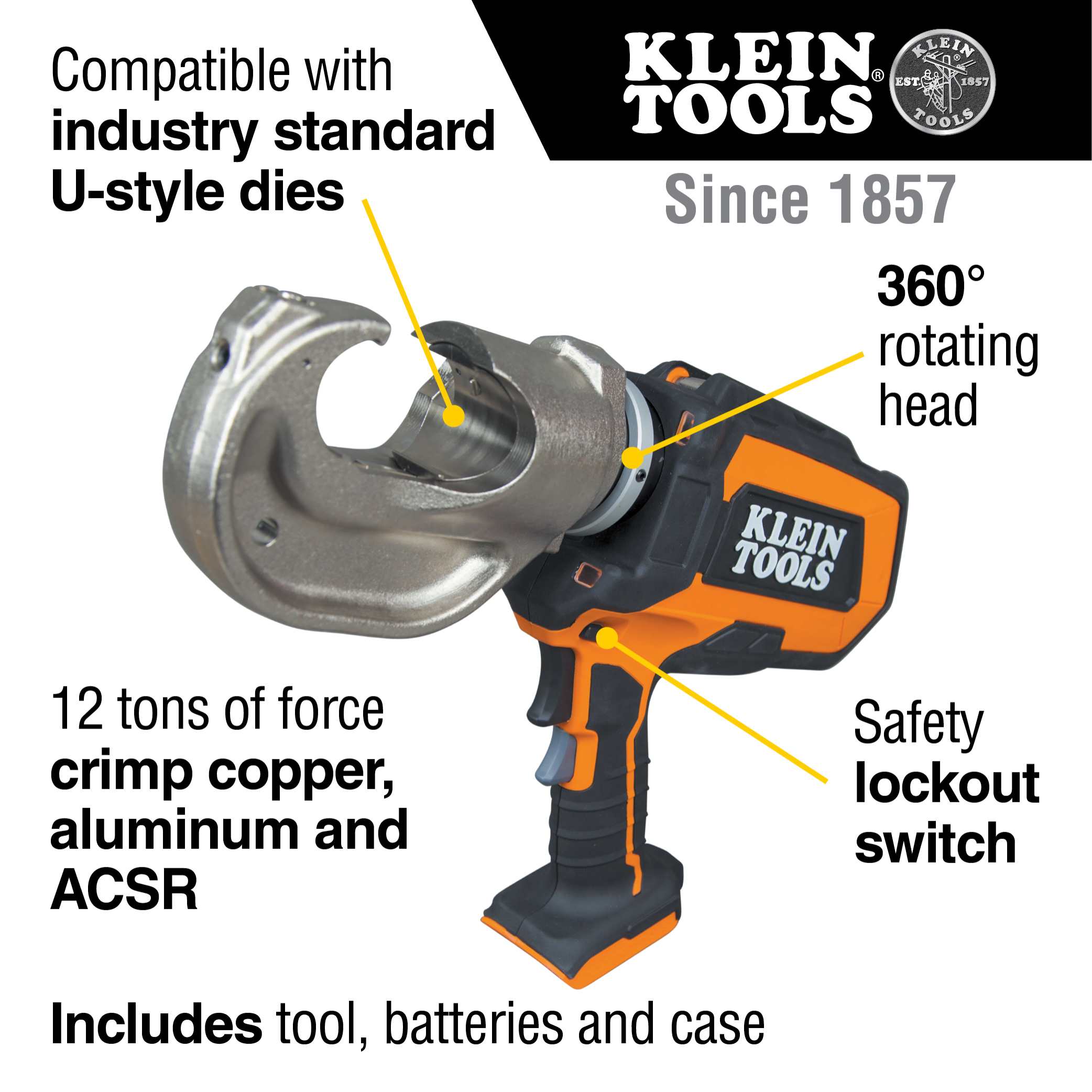

  • 12 tons of force crimps copper, aluminum and ACSR
  • 360-degree rotating head for flexibility in positioning
  • Green light indicates full pressure confirming a good crimp has been made

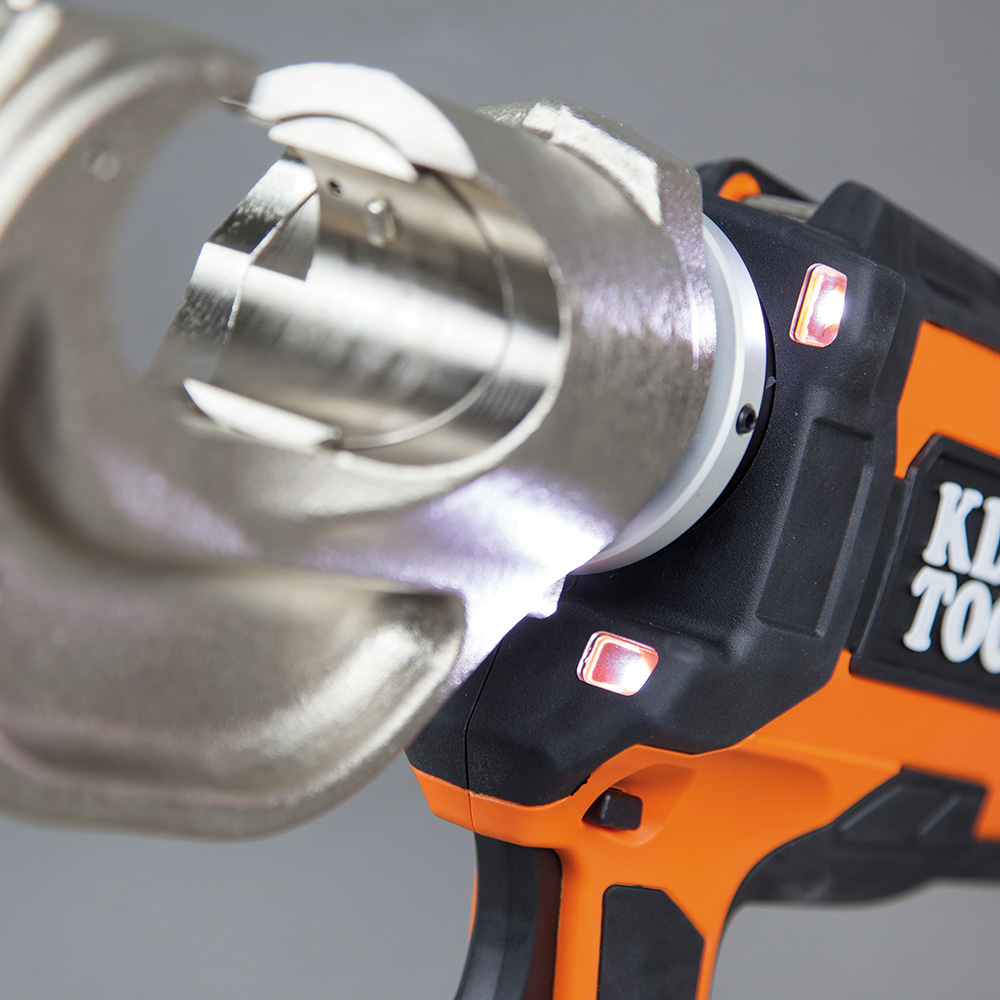

  • Four working lights for dark spaces
  • Compatible with industry standard U-style dies
  • Safety lockout switch

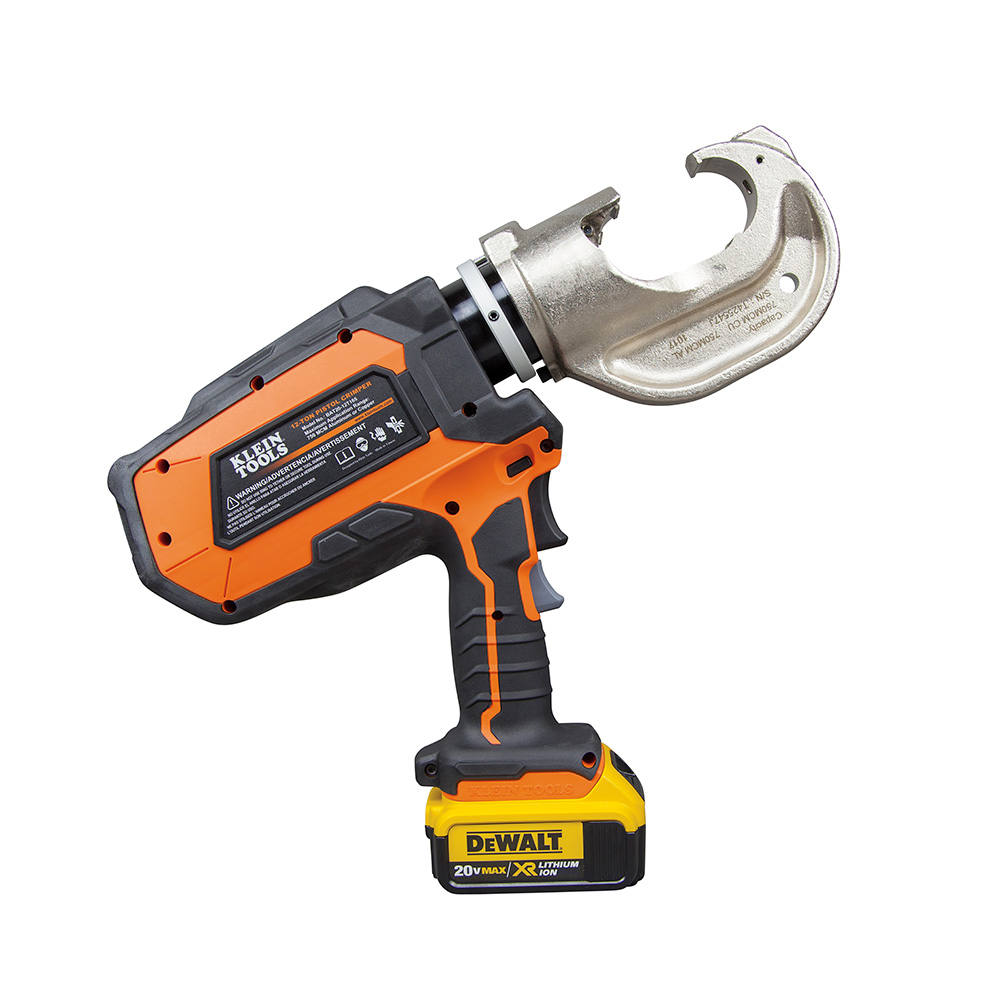

  • Powered by a DeWALT 20V lithium-ion battery

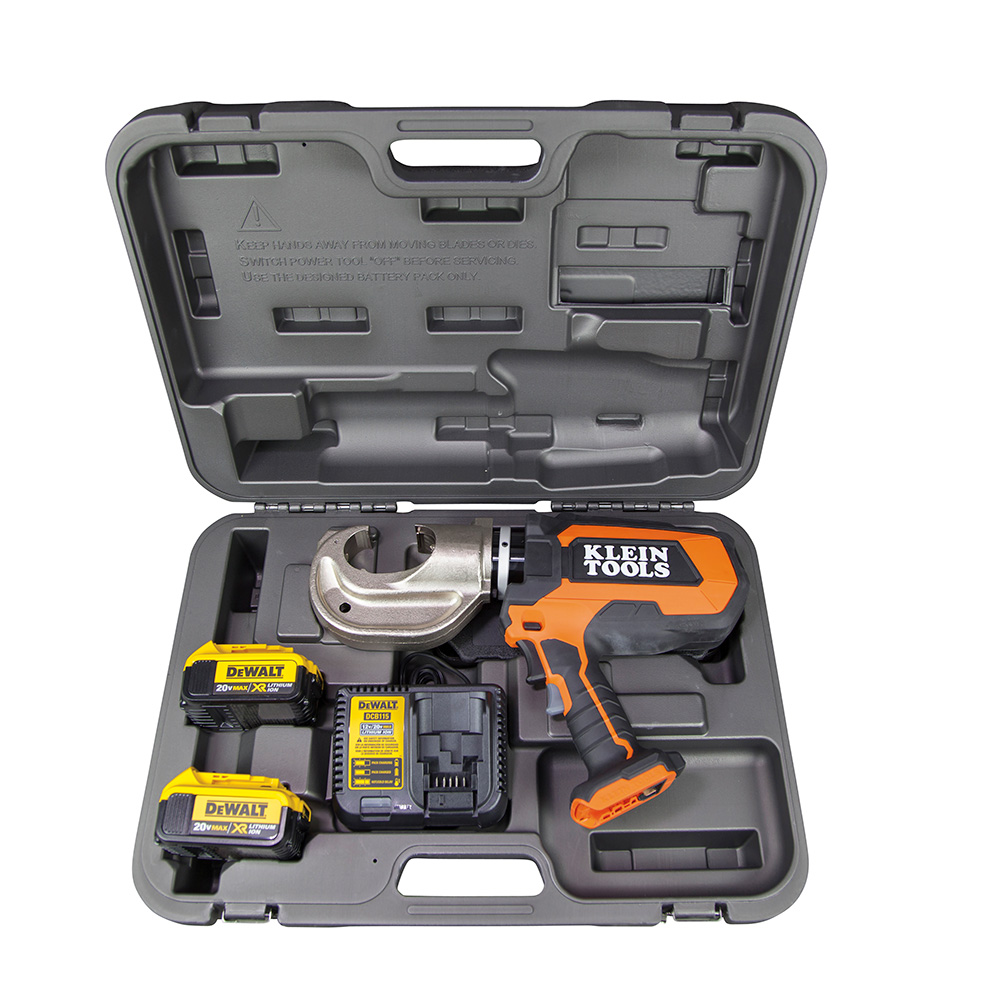

  • Includes tool, two 4 Ah batteries, charger and case
  • DeWALT is a registered trademark of the Black & Decker corporation
Videos
Images
High-Res JPG bat2012t1651_photo.jpg
Interactive Catalog

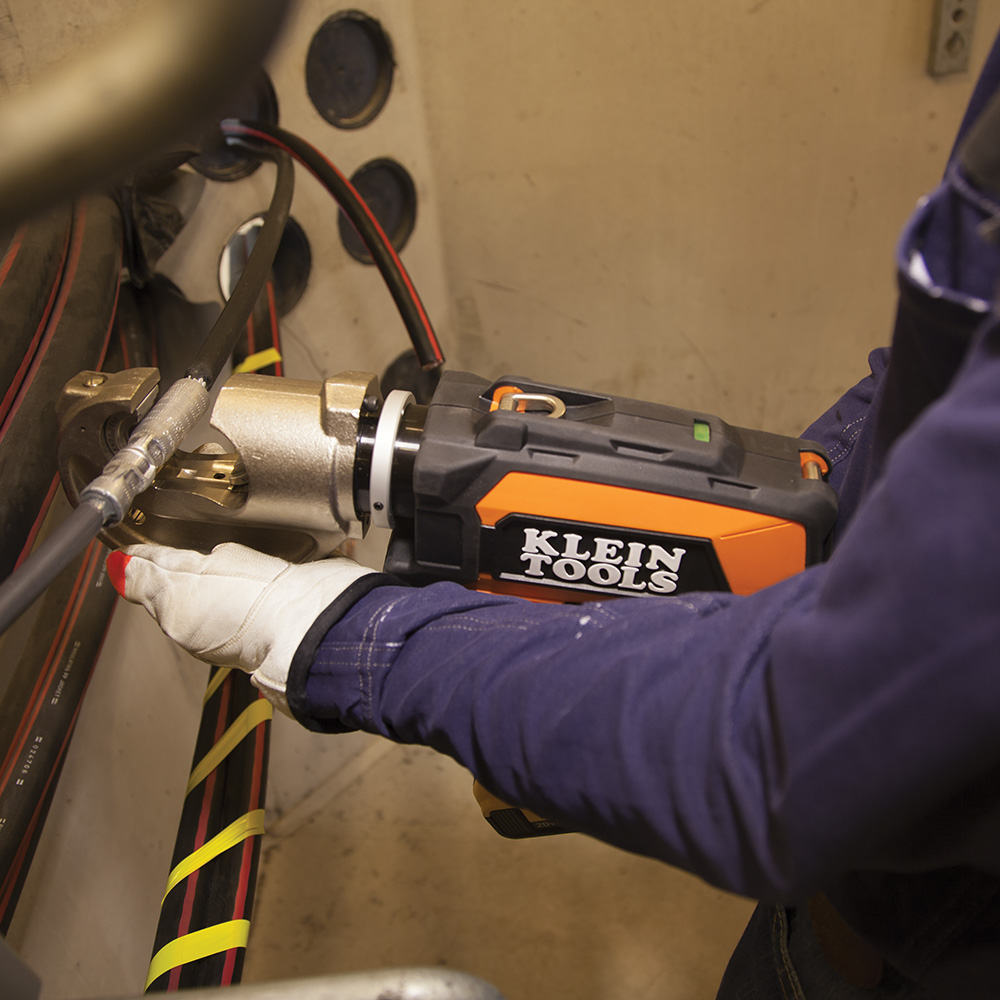

Designed for professional cable crimping applications, this tool provides 12 tons of force to get the job done fast. It crimps copper, aluminum and ACSR. The head rotates 360 degrees for position flexibility. Compatible with industry standard U-style dies. Four working lights illuminate darker spaces. Includes crimper, C-style head, batteries, charger and a carrying case.

Specifications
Type:
Battery Operated
Application:
Cable Crimping
Special Features:
Powered by DeWALT 20V Lithium-ion Batteries
Maximum Cable Capacity (Copper):
8 AWG to 750 MCM
Maximum Cable Capacity (Aluminum):
8 AWG to 750 MCM
Maximum Cable Capacity (ACSR):
556 MCM
Overall Length:
22.625'' (57.5 cm)
Overall Height:
6.578'' 16.7 cm)
Overall Width:
17.063'' (43.3 cm)
Material:
ABS, PA6, GF, TPE
Batteries:
Lithium-Ion
Voltage:
20V
Included:
Crimper; C-Style Head; (2) 2 Ah Batteries; Charger and Case
Weight:
28.2 lb (12.8 kg)
Number of Batteries:
2
UPC:
092644290169
Additional Information
Warnings
  • Always use approved eye protection.
  • Do not use to pry or chisel.
  • Not insulated. Will not protect against electrical shock.
  • NEVER operate without dies.
